Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr STMicroelectronics
Package Tube
Product Status Obsolete
Programmable Not Verified
Driven Configuration High-Side
Channel Type Single
Number of Drivers 1
Gate Type N-Channel MOSFET
Voltage - Supply 4.4V ~ 6.5V
Current - Peak Output (Source, Sink) 500mA, 500mA
Input Type Inverting
High Side Voltage - Max (Bootstrap) 150 V
Rise / Fall Time (Typ) 100ns, 100ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number L9856
Standard Package 100 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 612020-L9856
Ultra Librarian 3D Model Ultra Librarian L9856 CAD Model

Description

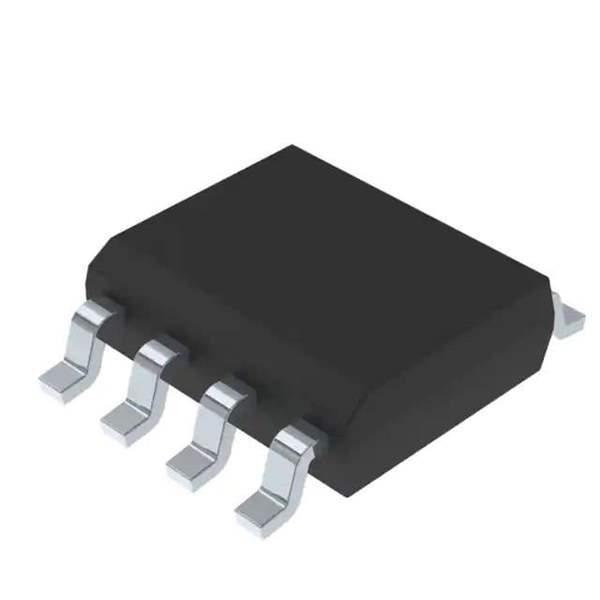

STMicroelectronics Product L9856 Overview

The L9856 from STMicroelectronics is a high-performance, octal low-side driver integrated circuit designed to manage a wide range of automotive applications. This robust component is engineered to drive inductive, capacitive, and resistive loads, offering a versatile solution for the automotive industry's demanding environments.

Key Features

  • Multiple Channel Outputs: The L9856 comes with eight low-side outputs, providing ample channels to control various loads.
  • High Voltage Capability: It is capable of handling up to 60V (typical), ensuring reliability under surge conditions.
  • Current Limitation: Each channel has a dedicated current limit to protect against overcurrent conditions, enhancing the safety and longevity of the device.
  • Thermal Shutdown: With an integrated thermal shutdown feature, the device prevents overheating, thus safeguarding the IC and the system it controls.
  • Diagnostic Functions: The L9856 includes comprehensive diagnostic capabilities for feedback on the status of each channel, including open-load detection, which is crucial for system monitoring and troubleshooting.
  • Serial Peripheral Interface (SPI): The inclusion of SPI allows for easy communication with microcontrollers, enabling control and diagnostics over a simple interface.

Applications

The versatility of the L9856 makes it suitable for a broad spectrum of automotive applications, including but not limited to:

  • Engine control units
  • Body control modules
  • Lamp drivers
  • Relay and solenoid drivers

Reliability and Quality

STMicroelectronics ensures that the L9856 meets the highest quality standards, with rigorous testing and validation to withstand the automotive industry's stringent requirements. The device is designed for an extended temperature range, making it reliable in various climatic conditions.

Overall, the L9856 octal low-side driver is a testament to STMicroelectronics' commitment to providing innovative, high-quality products that advance automotive technology and performance.
