Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Thyristors
Mfr STMicroelectronics
Series LCP
Package Tape & Reel
Product Status Active
Current - Peak Pulse (8/20µs) 60 A
Current - Peak Pulse (10/1000µs) 25 A
Current - Hold (Ih) 150 mA
Number of Elements 2
Capacitance 35pF
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number LCDP1521
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 876801-LCDP1521SRL
Ultra Librarian 3D Model Ultra Librarian LCDP1521SRL CAD Model

Description

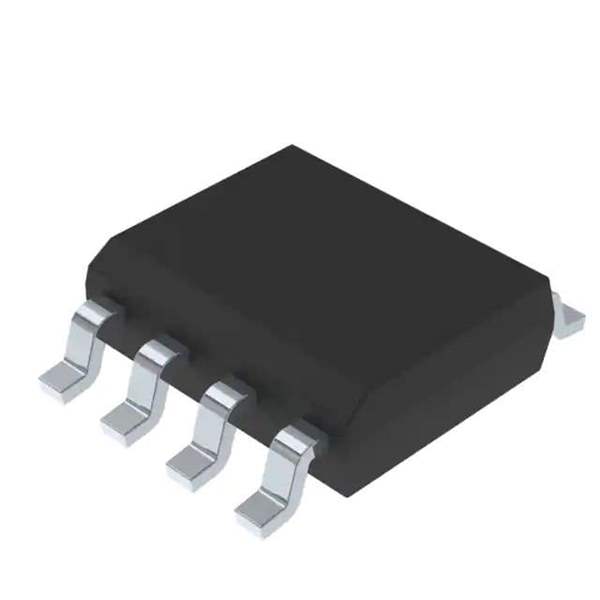

Introducing the LCDP1521SRL Transient Voltage Suppression Diode from STMicroelectronics

The LCDP1521SRL is a state-of-the-art transient voltage suppression (TVS) diode designed by STMicroelectronics to protect sensitive electronics from voltage spikes and surges. This robust component is specifically engineered to safeguard high-speed data lines and communication interfaces against electrostatic discharge (ESD), ensuring the reliability and longevity of your electronic devices.

Key Features

  • Advanced Protection: The LCDP1521SRL offers superior protection against ESD, with a stand-off voltage of 15V and a maximum clamping voltage that provides a safeguard for sensitive circuits without compromising signal integrity.
  • Low Capacitance: With its ultra-low capacitance design, this TVS diode is ideal for protecting high-speed data lines, such as USB 2.0, HDMI, and Gigabit Ethernet, ensuring minimal signal attenuation and maximum data throughput.
  • Bidirectional Clamping: The bidirectional clamping feature of the LCDP1521SRL ensures protection for both positive and negative transients, making it a versatile choice for various applications.
  • Compact Package: Encased in a small SLP1616P6 package, this TVS diode is perfect for space-constrained applications, providing essential protection without taking up valuable board real estate.
  • High Reliability: Manufactured by STMicroelectronics, a leader in semiconductor solutions, the LCDP1521SRL is built to the highest quality standards, offering exceptional reliability in a range of operating conditions.

Applications

The LCDP1521SRL is versatile and can be used in a variety of applications, including:

  • Consumer Electronics (Smartphones, Tablets, PCs)
  • Telecommunication Equipment
  • Networking Devices and Infrastructure
  • Audio/Video Interfaces
  • Portable Electronics

With its combination of high-performance protection, low capacitance, and compact footprint, the LCDP1521SRL from STMicroelectronics is an excellent choice for designers looking to enhance the durability and resilience of their electronic products. Whether you're working on consumer gadgets or industrial-grade equipment, this TVS diode will provide the critical protection your devices need against the unpredictable nature of transient voltage events.
