LDS3985M33R Voltage Regulator by STMicroelectronics

The LDS3985M33R is a highly efficient, low-dropout linear voltage regulator produced by STMicroelectronics, a leader in semiconductor solutions. This compact device is designed to deliver a fixed output voltage of 3.3 volts, making it an ideal choice for stabilizing voltage in a wide range of electronic applications, from consumer electronics to industrial controls.

The LDS3985M33R stands out for its low dropout voltage, which ensures efficient operation even when the input voltage is very close to the output voltage. This feature is particularly beneficial in battery-powered devices, where maximizing battery life is crucial. The regulator is capable of delivering up to 300mA of output current, which is suitable for powering small to medium-sized loads.

One of the key attributes of the LDS3985M33R is its low quiescent current, which significantly reduces power consumption when the device is in idle mode. This aspect is particularly important for portable applications where prolonging battery life is essential. Additionally, the regulator offers excellent load and line regulation, maintaining a stable output voltage despite variations in input voltage or load conditions.

The LDS3985M33R also incorporates several protective features to ensure the safety and reliability of the end application. It includes thermal shutdown protection, which prevents damage from overheating, and current limiting to protect the regulator and the load from excessive current conditions. Moreover, the device is short-circuit resistant, providing an additional layer of security for connected components.

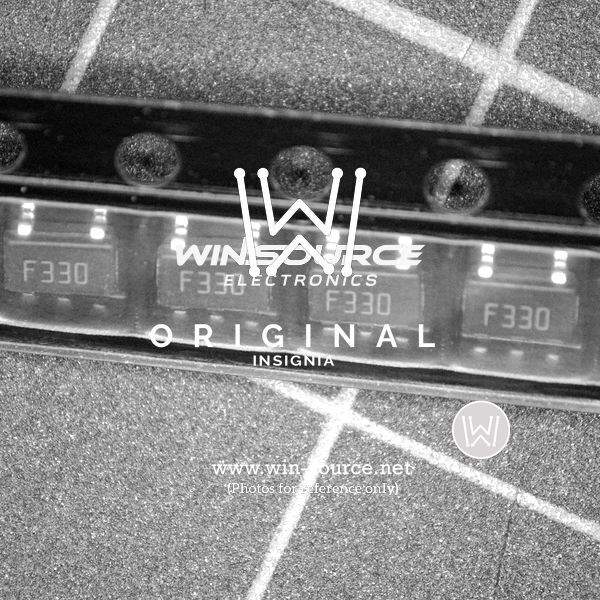

This voltage regulator is available in a small SOT-23 package, which is ideal for space-constrained applications. Its small footprint and low profile make it a perfect fit for portable devices, such as mobile phones, GPS units, and handheld gaming consoles. Furthermore, the device is characterized by its ease of use, requiring only two external capacitors for stability, thus simplifying the design and reducing the overall bill of materials.

In summary, the LDS3985M33R from STMicroelectronics is a reliable and efficient solution for voltage regulation needs, combining low power consumption with robust protective features in a compact form factor.
