Products specifications

Category Integrated Circuits (ICs) - Memory - Memory
Mfr STMicroelectronics
Package Tape & Reel
Product Status Active
Programmable Verified
Memory Type Non-Volatile
Memory Format EEPROM
Technology EEPROM
Memory Size 64Kbit
Memory Organization 8K x 8
Memory Interface I2C
Clock Frequency 1 MHz
Write Cycle Time - Word, Page 5ms
Access Time 450 ns
Voltage - Supply 1.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number M24C64
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0051
Win Source Part Number 843453-M24C64-DFMN6TP
Ultra Librarian 3D Model Ultra Librarian M24C64-DFMN6TP CAD Model

Description

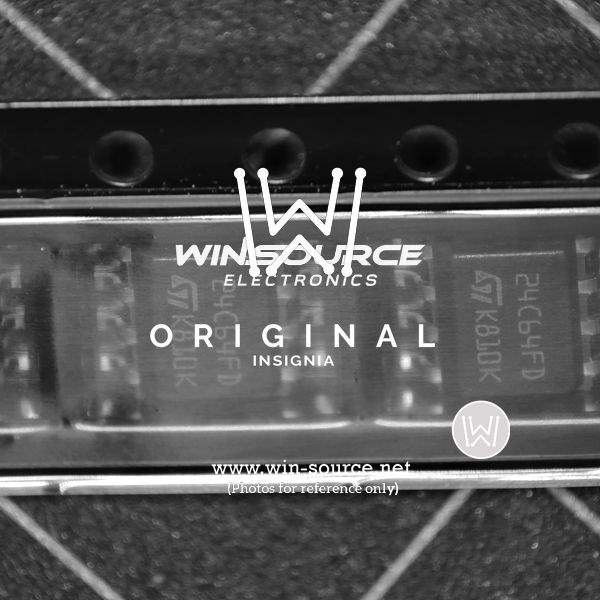

STMicroelectronics M24C64-DFMN6TP EEPROM

The M24C64-DFMN6TP is a high-performance 64-Kbit serial I²C bus EEPROM (Electrically Erasable Programmable Read-Only Memory) from STMicroelectronics, a global semiconductor leader known for its innovative and reliable memory solutions. This product is particularly designed for advanced data storage applications where efficient and fast non-volatile memory is essential.

Key Features

  • Memory Size: 64 Kbits of EEPROM, allowing for robust storage capacity for various data logging and configuration settings.
  • Communication Interface: The device operates via the I²C serial bus interface, which supports a high-speed mode (400 kHz) and a fast mode plus (1 MHz), offering flexible and efficient communication with microcontrollers.
  • Write Cycle Time: Fast write cycle times of 5 ms (typical) for efficient data management and minimal wait times during write operations.
  • Write Protect: A hardware write protect feature that allows the user to set a write protect pin to prevent accidental data overwriting.
  • Operating Voltage Range: A wide power supply range from 1.8 V to 5.5 V, making it suitable for various electronic applications and compatible with low-voltage operations.
  • Temperature Range: The device is operational over an extended temperature range from -40°C to +85°C, ensuring reliability and performance under varying environmental conditions.
  • Packaging: Available in an 8-pin UFDFPN package, which is known for its compact footprint and suitability for space-constrained applications.

Applications

The M24C64-DFMN6TP EEPROM is ideal for a wide array of applications, including but not limited to:

  • Industrial and medical equipment
  • Consumer electronics
  • Automotive systems
  • Smart metering
  • Portable devices

With its robust design and versatile features, the M24C64-DFMN6TP from STMicroelectronics represents a reliable choice for designers and engineers looking to integrate a dependable memory component into their electronic systems. Its ease of integration, coupled with STMicroelectronics' commitment to quality, ensures that this EEPROM will meet the stringent requirements of modern electronic applications.
