Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Clock/Calendar
Features Alarm, Leap Year, Square Wave Output, Watchdog Timer
Date Format YY-MM-DD-dd
Supply Voltage - Operating 1.3 V to 4.4 V
Current - Timekeeping (Max) 0.7μA to 0.95μA @ 1.3V to 4.4V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)

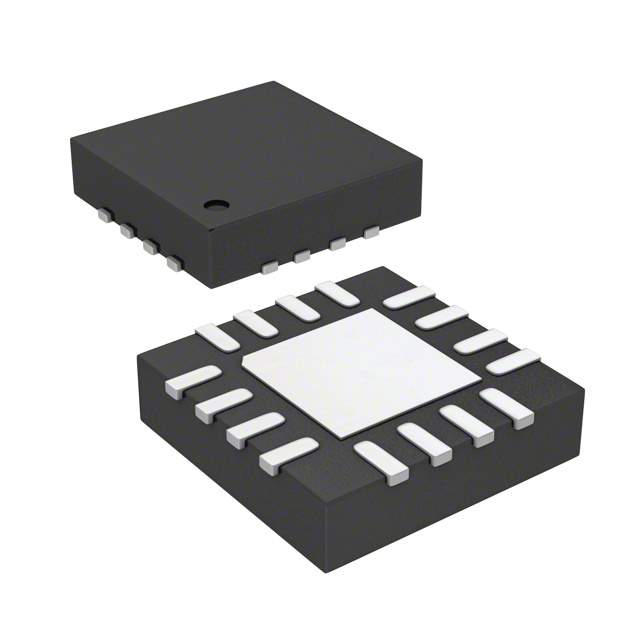

Case / Package 16-QFN (3x3)
Win Source Part Number 020927-M41T62Q6F
Family Name M41T62
Introduction Date November 13, 2003
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian M41T62Q6F CAD Model

Description

The M41T62Q6F from STMicroelectronics is a low-power serial real-time clock (RTC) with a built-in 32.768 kHz oscillator (external crystal controlled) and an integrated crystal. This highly integrated timekeeping solution is designed to address a wide range of applications requiring accurate time tracking and management, such as embedded systems, servers, data loggers, industrial machinery, and IoT devices.

Key Features

  • Low Power Consumption: The device is optimized for low power consumption, making it ideal for battery-powered applications.
  • Accuracy: It provides highly accurate timekeeping with a precision of ±5 ppm over the temperature range of -40°C to 85°C.
  • Serial Interface: The M41T62Q6F features an I2C serial interface for communication with microcontrollers and processors, supporting a clock frequency of up to 400 kHz.
  • Programmable Alarm: A programmable alarm function is available, allowing users to set up single or periodic alarms.
  • Counters: It includes counters for seconds, minutes, hours, day, date, month, year, and century with leap year compensation valid up to 2099.
  • Additional Features: The device also offers a programmable square-wave output, low-battery detection, and an automatic switchover to battery on main power loss.

Product Specifications

Feature Description Voltage Supply 1.3V to 4.4V Operating Temperature -40°C to 85°C Package / Case SOP-8 Package Quantity 3000 units/reel

The M41T62Q6F is available in a small SOP-8 package, providing a space-saving solution for PCB designs. With its robust feature set and high reliability, the M41T62Q6F from STMicroelectronics is the go-to choice for designers looking to integrate a real-time clock with minimal power consumption and maximum precision.
