Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Packaging Tray
Part Status Obsolete(EOL)
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH
Memory Size 2Mb (256K x 8)
Access Time 70ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 52-QFP
Manufacturer Package 52-PQFP (10x10)
Win Source Part Number 792607-PSD834F2-70M
Popularity Medium
Supply and Demand Status Limited
Family Name PSD834F2
Introduction Date January 04, 2004
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PSD834F2-70M CAD Model

Description

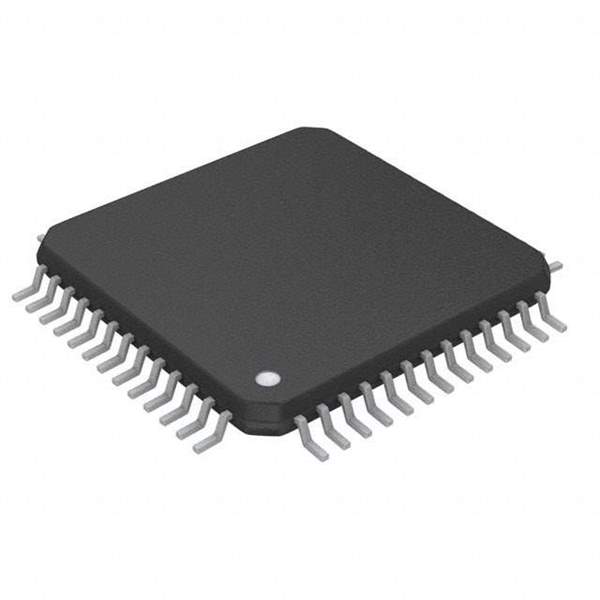

Product Overview: PSD834F2-70M from STMicroelectronics

The PSD834F2-70M is a sophisticated integrated device manufactured by STMicroelectronics, designed to cater to the needs of complex digital systems. This product merges the capabilities of Programmable System Devices (PSD) with Flash memory technology to provide a versatile and efficient solution for system-level integration.

Key Features

  • Memory Capacity: The device is equipped with a 70ns Flash memory array, ensuring swift read and write operations, which is essential for high-speed applications.
  • Programmable Logic: It contains programmable logic that allows for in-system configurability, thus enabling the customization of logic functions to meet specific design requirements.
  • In-System Programming (ISP): The PSD834F2-70M supports ISP, allowing for firmware updates and changes without the need for removing the chip from its application environment.
  • Security: With security features in place, the device ensures the protection of intellectual property and prevents unauthorized access to the system's firmware.
  • Peripheral Integration: It incorporates a range of peripheral interfaces, which simplifies the design process and reduces the need for additional components.

Applications

The PSD834F2-70M is ideal for a variety of applications where system integration and flexibility are paramount. Its robust design makes it suitable for:

  • Embedded Control Systems
  • Telecommunications
  • Automotive Electronics
  • Industrial Control Systems
  • Consumer Electronics

Technical Specifications

At the heart of the PSD834F2-70M is a high-density Flash memory, along with programmable logic cells and a wide range of peripheral options. The device operates over a standard temperature range and is packaged in a surface-mount format for easy integration into various circuit designs.

Conclusion

STMicroelectronics' PSD834F2-70M is a powerful and flexible solution that streamlines the design of complex digital systems. Its combination of Flash memory and programmable logic, along with its in-system programmability and security features, makes it an invaluable component for designers looking to optimize their systems for performance and reliability.
