Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr STMicroelectronics
Series SM2T, TRANSIL™
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V
Voltage - Breakdown (Min) 3.6V
Voltage - Clamping (Max) @ Ipp 6.8V
Current - Peak Pulse (10/1000µs) 30A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 2500pF @ 1MHz
Mounting Type Surface Mount

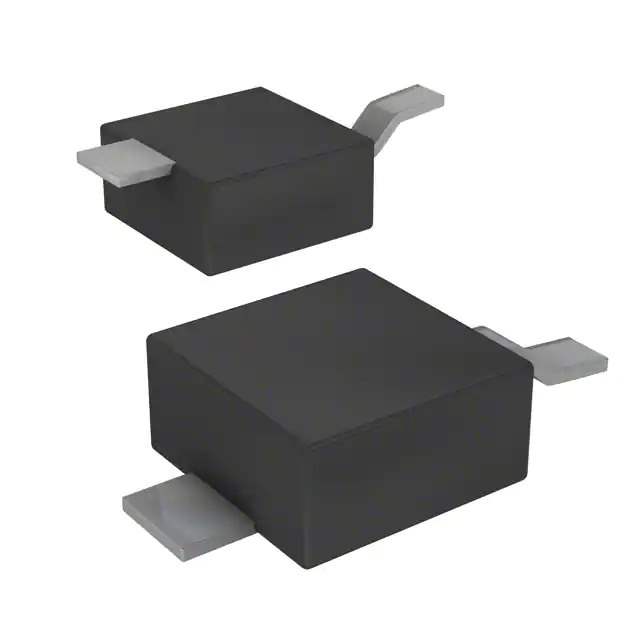

Package / Case DO-216AA
Supplier Device Package DO-216AA
Base Product Number SM2T3
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 668148-SM2T3V3A
Ultra Librarian 3D Model Ultra Librarian SM2T3V3A CAD Model

Description

STMicroelectronics Product Overview: SM2T3V3A Transil™ Diode

The SM2T3V3A from STMicroelectronics is a high-performance Transil™ diode designed to provide state-of-the-art overvoltage protection for sensitive electronics. This transient voltage suppression (TVS) diode is engineered to clamp transient voltages and shunt excess energy away from the protected components, ensuring the reliability and longevity of electronic systems.

Key Features

  • Stand-off Voltage: The device features a stand-off voltage of 3.3V, making it suitable for a range of low-voltage applications.
  • Peak Pulse Power: With a peak pulse power dissipation of 400W (10/1000µs), the SM2T3V3A can handle significant transient power spikes.
  • Low Clamping Voltage: The low clamping voltage ensures that sensitive circuits are well protected from overvoltage events without being exposed to excessive voltage levels.
  • Fast Response Time: The diode's fast response time to transient overvoltages ensures that the protected components are immediately shielded from harmful voltage spikes.
  • Low Capacitance: The device features low capacitance, making it ideal for high-speed data lines and other applications where signal integrity is crucial.
  • Package: Available in a compact SMB (DO-214AA) package, the SM2T3V3A is designed to save board space and is suitable for automated assembly.
  • Compliance: It complies with the IEC 61000-4-2 and IEC 61000-4-5 standards, ensuring compatibility with electrostatic discharge (ESD) and surge requirements.

Applications

The SM2T3V3A is versatile and can be used in a variety of applications, including:

  • Protection of I/O Interfaces
  • Computer and Consumer Electronics
  • Telecommunication Devices
  • Power Supply Protection
  • Industrial Electronics

Conclusion

With its robust design and comprehensive features, the SM2T3V3A Transil™ diode from STMicroelectronics is an excellent choice for designers looking to enhance the overvoltage protection of their electronic products. Its ability to mitigate the effects of transient voltage spikes helps to prevent damage to sensitive components, ensuring system reliability in a wide array of applications.
