Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 10A
Voltage - Collector Emitter Breakdown (Maximum) 600V
Vce Saturation (Maximum) @ Ib, Ic 5V @ 800mA, 4A
Current - Collector Cutoff (Maximum) 1mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 4 @ 5A, 5V
Power - Max 50W
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole

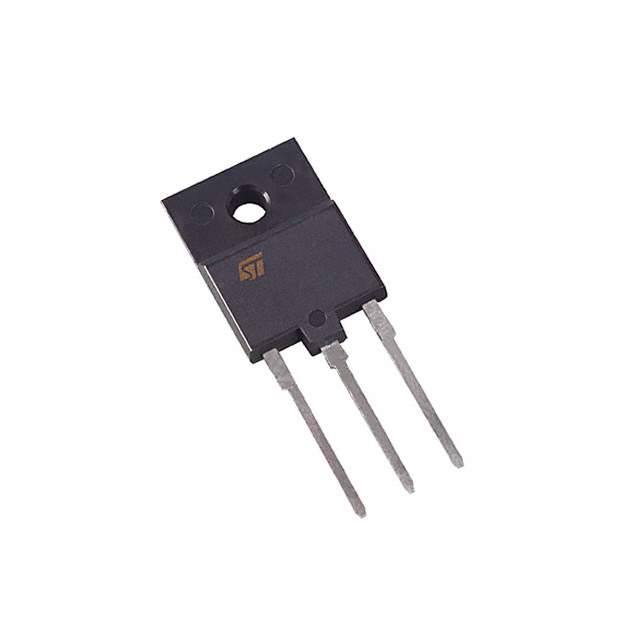

Package ISOWATT-218-3
Manufacturer Package ISOWATT-218
RoHS State Request Verification
Win Source Part Number 1260142-ST1802HI
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name ST1802HI
Introduction Date January 11, 2000
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian ST1802HI CAD Model

Description

The ST1802HI is a state-of-the-art NPN power transistor designed by STMicroelectronics, a global semiconductor leader known for its innovative and high-performance products. This power transistor is specifically engineered to address the needs of high voltage switching applications, making it an ideal component for a wide range of electronic devices and power supplies.

Key Features

  • High Voltage Capability: The ST1802HI can handle high voltage operations, with a collector-emitter voltage (Vceo) of 800V, ensuring reliability in demanding environments.
  • Fast Switching Speed: With a fast switching response, this transistor is suitable for high-frequency operations, contributing to the efficiency of the overall circuit.
  • Low Saturation Voltage: The low collector-emitter saturation voltage (Vcesat) minimizes power loss and heat generation, enhancing the longevity of the device.
  • High Current Rating: It has a collector current (Ic) rating of up to 10A, allowing it to handle significant power levels for a wide range of applications.

Applications

The versatility of the ST1802HI makes it suitable for a diverse array of applications, including:

  • Electronic Ballasts for Fluorescent Lighting
  • Switch Mode Power Supplies (SMPS)
  • Motor Control Circuits
  • High-Frequency Inverters
  • Power Switching Circuits

Technical Specifications

Parameter Value Collector-Emitter Voltage (Vceo) 800V Collector Current (Ic) 10A Collector-Emitter Saturation Voltage (Vcesat) Low Switching Speed Fast

STMicroelectronics' commitment to excellence is evident in the design and manufacturing of the ST1802HI. With its robust construction and superior electrical characteristics, this high voltage fast-switching NPN power transistor is a reliable choice for designers and engineers seeking performance and durability.
