ST485ERBDR Low Power RS-485/RS-422 Transceiver

The ST485ERBDR is a robust and versatile low power transceiver designed by STMicroelectronics for RS-485 and RS-422 communication protocols. This particular product is engineered to provide reliable data transmission over long distances and in electrically noisy environments, making it an ideal choice for industrial network applications such as factory automation, building automation, and process control systems.

Key Features

• Low Power Consumption: With its low-power design, the ST485ERBDR ensures reduced power consumption, which is crucial for energy-efficient operations and battery-powered applications.
• High Data Rate: Capable of supporting data rates up to 5 Mbps, this transceiver can handle high-speed data transmission with ease, facilitating quick and efficient communication across a network.
• Wide Common-Mode Range: The device operates effectively over a wide common-mode range (-7V to +12V), enhancing its reliability and signal integrity in challenging electrical environments.
• Thermal Shutdown Protection: Integrated thermal shutdown protection prevents damage to the device from overheating, ensuring longevity and stable operation.
• Failsafe Receiver: The failsafe receiver feature ensures a known output state (high) when the inputs are left open, shorted, or idle, providing additional reliability in uncertain conditions.
• ESD Protection: The transceiver is equipped with robust ESD protection, which safeguards the device against electrostatic discharges that can occur during handling or operation.

Applications

The ST485ERBDR is suited for a broad range of applications that require differential data transmission. Its features make it particularly well-suited for:

• Industrial networks such as Modbus, Profibus, and other fieldbus protocols.
• Building automation systems for centralized control and monitoring.
• Telecommunications systems requiring robust data communication.
• Security systems, such as access control and surveillance.
• Networked control systems in automotive contexts.

Package and Quality

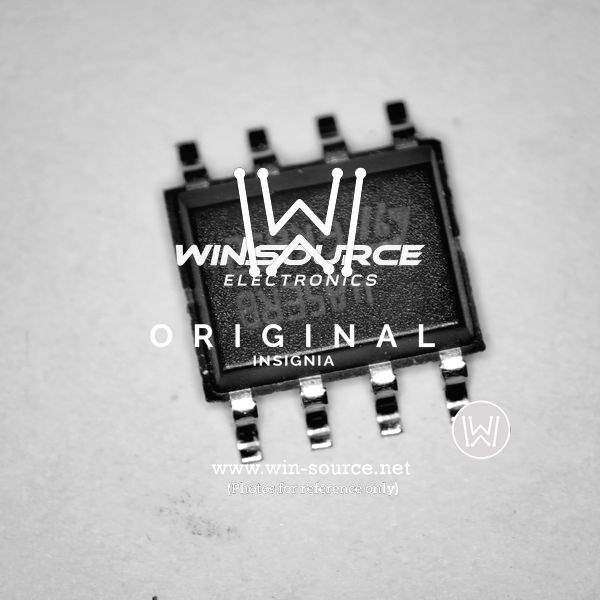

The ST485ERBDR comes in a small and convenient SO-8 package, which is easy to integrate into various circuit designs. STMicroelectronics ensures high-quality manufacturing standards, providing a reliable and consistent performance for the end-user.
