Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series ST7
Package Tray
Product Status Obsolete
Core Processor ST7
Core Size 8-Bit
Speed 8MHz
Connectivity SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 17
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
EEPROM Size 128 x 8
RAM Size 256 x 8
Supply Voltage - Operating 2.7V ~ 5.5V
Data Converters A/D 7x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 20-VQFN Exposed Pad
Base Product Number ST7FL
Other Names 497-5628
Standard Package 490
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1263211-ST7FLIT19BF1U6
Ultra Librarian 3D Model Ultra Librarian ST7FLIT19BF1U6 CAD Model

Description

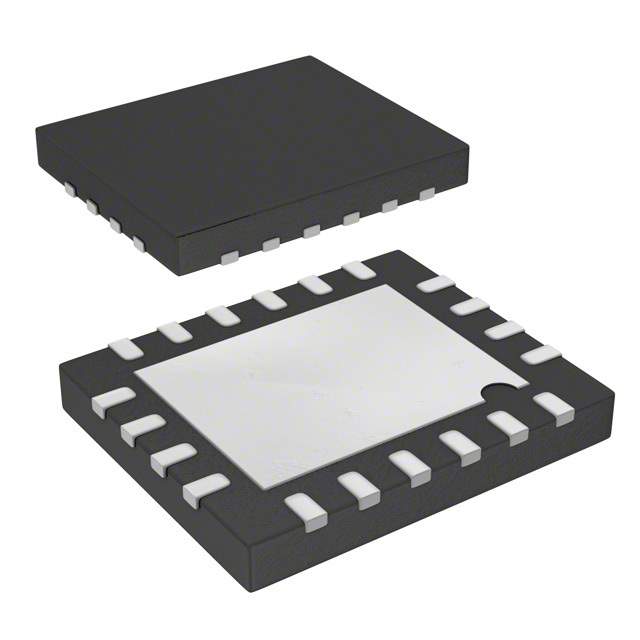

STMicroelectronics ST7FLIT19BF1U6 Microcontroller

The ST7FLIT19BF1U6 is a cutting-edge microcontroller designed by STMicroelectronics, tailored for a diverse range of applications where efficient control and processing capabilities are required in a compact form factor. This versatile microcontroller is part of the ST7 family, which is renowned for its high performance, reliability, and ease of use.

At the heart of the ST7FLIT19BF1U6 is an advanced 8-bit core processor operating at a speed of up to 8 MHz, which provides the computational power necessary to handle complex tasks. The device boasts a wide operating voltage range from 3.3V to 5.5V, making it suitable for various electronic environments and ensuring compatibility with both TTL and CMOS logic levels.

This microcontroller comes with 1 KB of RAM and 8 KB of Flash memory, which is ideal for applications that require ample space for code storage and efficient data management. The Flash memory is also in-system programmable, allowing for firmware updates and application tweaks without the need for external programming devices.

The ST7FLIT19BF1U6 is equipped with a rich set of peripherals, including:

  • An 8-bit timer with PWM capabilities, perfect for motor control and LED dimming applications.
  • A 10-bit Analog-to-Digital Converter (ADC) with up to 5 multiplexed channels, enabling the microcontroller to interface with analog sensors and convert their signals into digital data for processing.
  • A synchronous serial communication (SPI) interface, which provides high-speed data transfer between the microcontroller and other digital devices.
  • An I2C interface for multi-master communications, allowing for easy connection to other I2C compatible devices within a system.

The device also features an on-chip watchdog timer, which helps to ensure system reliability by resetting the microcontroller in the event of a software anomaly or malfunction. Additionally, the ST7FLIT19BF1U6 supports up to 28 input/output (I/O) lines, providing ample connectivity options for interfacing with external components, sensors, and actuators.

With its robust feature set and flexible I/O options, the ST7FLIT19BF1U6 from STMicroelectronics is an excellent choice for designers looking to develop sophisticated and reliable embedded systems in areas such as home appliances, automotive control, industrial automation, and consumer electronics.
