Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube
Voltage - Off State 200V
Voltage - Gate Trigger (Vgt) (Maximum) 1.3V
Current - Gate Trigger (Igt) (Maximum) 80mA
Voltage - On State (Vtm) (Maximum) 1.9V
Current - On State (It (AV)) (Maximum) 32A
Current - On State (It (RMS)) (Maximum) 50A
Current - Hold (Ih) (Maximum) 150mA
Current - Off State (Maximum) 10μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 580A, 610A
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole

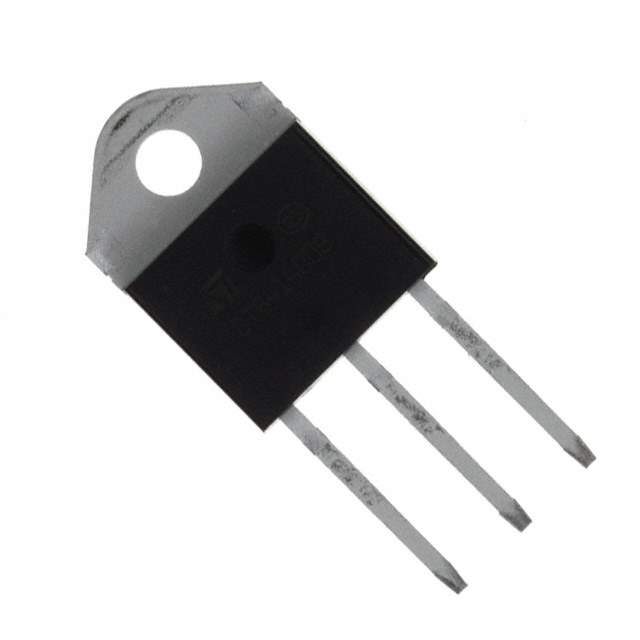

Package TOP-3
Manufacturer Package TOP3
Win Source Part Number 770613-BTW69-200RG
Popularity Medium
Supply and Demand Status Limited
Family Name BTW69-200
Introduction Date August 18, 1995
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BTW69-200RG CAD Model

Description

Product Overview: BTW69-200RG

The BTW69-200RG is a robust silicon-controlled rectifier (SCR) manufactured by STMicroelectronics, a leader in semiconductor solutions. This high-power SCR is designed to deliver exceptional performance in applications requiring phase control operations in converters, as well as in motor control circuits and battery chargers. With its industry-standard TO-247 package, the BTW69-200RG is engineered to handle high current loads while maintaining reliability and efficiency.

Key Features

  • Voltage Capacity: The BTW69-200RG can withstand up to 200V, making it suitable for a wide range of industrial and consumer applications that require high voltage operation.
  • Current Rating: This SCR can handle an average on-state current of 50A, ensuring robust performance for heavy-duty operations.
  • High Surge Capability: With a non-repetitive surge peak on-state current of 500A, the BTW69-200RG is capable of managing high surge conditions without degradation.
  • Gate Trigger Current: A low gate trigger current (IGT) is required to switch the device, making it compatible with a variety of control circuits.
  • Thermal Resistance: The TO-247 package offers excellent thermal resistance, which enhances the device's longevity and reliability under high-temperature conditions.

Applications

The BTW69-200RG is versatile and can be utilized in various applications, including:

  • Phase control operations in AC controllers
  • Motor control circuits for both AC and DC motors
  • Battery charging systems requiring precise control
  • High-power lighting systems
  • Industrial power tools and equipment

Reliability and Quality

STMicroelectronics is committed to delivering high-quality components that meet rigorous industry standards. The BTW69-200RG is no exception, as it is built with the dependability and durability expected from a leading semiconductor manufacturer. Its robust design ensures stable operation even in challenging environments, making it a reliable choice for designers and engineers seeking a high-performance SCR solution.

Conclusion

In summary, the BTW69-200RG SCR from STMicroelectronics stands out with its high voltage and current capabilities, surge robustness, and efficient thermal management. It is an ideal choice for those looking to incorporate a dependable SCR in their power control or motor drive applications.
