STD12NF06L-1 - STMicroelectronics

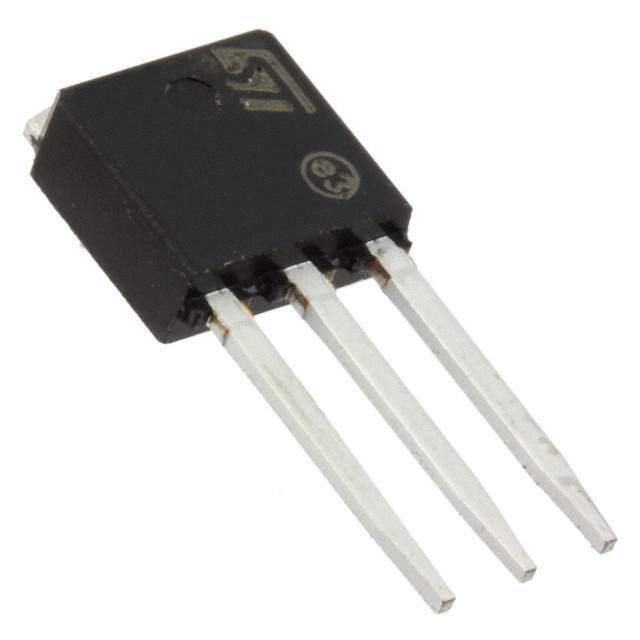

The STD12NF06L-1 is a high-performance N-channel Power MOSFET produced by STMicroelectronics, a leader in semiconductor solutions. This device is designed to deliver the efficiency and speed required in modern power management and switching applications. With its advanced technology and robust design, the STD12NF06L-1 is suitable for a wide range of uses, including power supplies, motor controls, lighting, and automotive systems.

Key Features

• Low On-Resistance: The STD12NF06L-1 boasts an exceptionally low on-resistance (R<sub>DS(on)), which translates to reduced conduction losses and improved overall efficiency.
• High Switching Speed: With its fast switching capabilities, this MOSFET can handle high-frequency operations with ease, making it ideal for applications requiring quick power regulation.
• Low Gate Charge: The device features a low gate charge (Q<sub>g), which minimizes the power needed to drive the gate, thus reducing switching losses.
• 100% Avalanche Tested: Each unit is rigorously tested for avalanche performance, ensuring reliability and robustness under harsh conditions.
• Logic Level Version: As a logic level device, it can be driven directly by microcontrollers, simplifying the design of control circuits.

Applications

The versatility of the STD12NF06L-1 allows it to be used in a variety of applications, including:

• High-efficiency DC/DC converters
• Switch-mode power supplies (SMPS)
• Power management for computer and telecom systems
• Brushed and brushless motor drives
• LED lighting solutions
• Automotive applications and load switching

Environmental and Quality Certifications

The STD12NF06L-1 is compliant with various environmental standards, ensuring minimal ecological impact and adherence to international regulations. It is lead-free, halogen-free, and RoHS compliant. STMicroelectronics is committed to providing products that meet the highest quality and reliability standards, and the STD12NF06L-1 is no exception.
