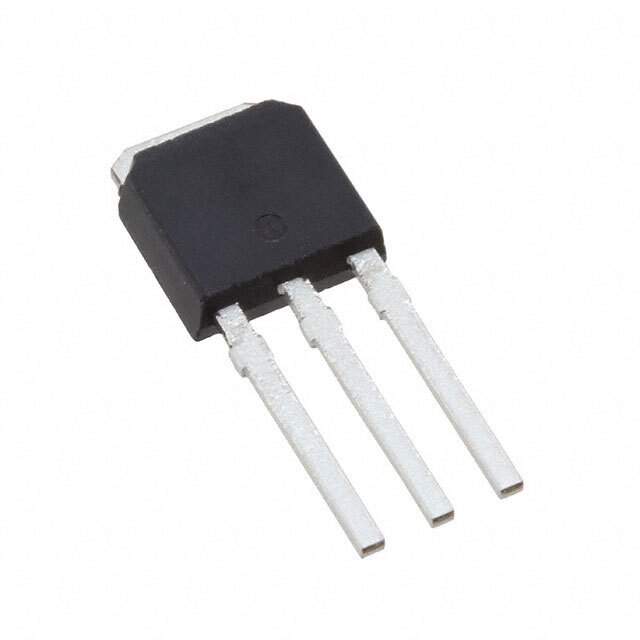

The IRLU8203 is a 30V, Logic-Level, N-Channel MOSFET from International Rectifier (now Infineon Technologies). This MOSFET is designed for low voltage, high-speed switching applications where gate drive voltage is limited. Its logic-level gate drive allows it to be directly driven by microcontrollers and other low-voltage logic circuits.

Applications

• DC-DC converters: Used in DC-DC converters for switching and voltage regulation.
• Load switches: Used as load switches to control power to different sections of a circuit.
• Motor control: Used in small motor control applications for controlling motor speed and direction.
• Power management: Used in power management circuits for efficient power distribution.
• Battery management systems (BMS): Used in BMS for switching and protection functions.

Features

• Logic-Level Gate Drive: Can be directly driven by microcontrollers and other low-voltage logic circuits (5V or 3.3V).
• 30V Blocking Voltage: Can withstand voltages up to 30V.
• High Speed Switching: Offers fast switching speeds, reducing switching losses.
• Low RDS(on): Features a low drain-source on-resistance, minimizing conduction losses.
• Surface Mount Package: Facilitates easy integration into printed circuit boards (PCBs).
• Avalanche Rated: Can withstand avalanche conditions for improved reliability.

Benefits

• Simplified Design: Simplifies circuit design due to its logic-level gate drive requirements.
• High Efficiency: Minimizes power losses due to its low RDS(on) and fast switching speed.
• Reduced Component Count: Reduces the need for gate drive circuitry, reducing component count and board space.
• Improved System Performance: Enhances the performance of power conversion systems through efficient power switching.
• Enhanced Reliability: Offers robust performance and long-term reliability.

Additional Details: The IRLU8203's gate threshold voltage, RDS(on) at different gate voltages, and thermal resistance are important parameters. The datasheet contains detailed specifications for these parameters, as well as information on safe operating area (SOA) and application circuit examples. Proper gate drive signal and thermal management are crucial for reliable operation.
