Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 800V
Continuous Drain Current at 25°C 3A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4.5V @ 50μA
Max Gate Charge 22.5nC @ 10V
Max Input Capacitance 575pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 80W (Tc)
Maximum Rds On at Id,Vgs 3.5 Ohm @ 1.5A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package D-Pak
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 031148-STD4NK80ZT4
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian STD4NK80ZT4 CAD Model

Description

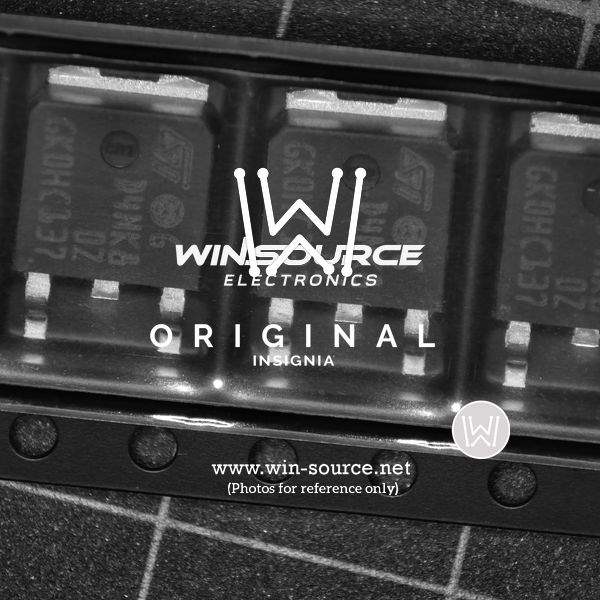

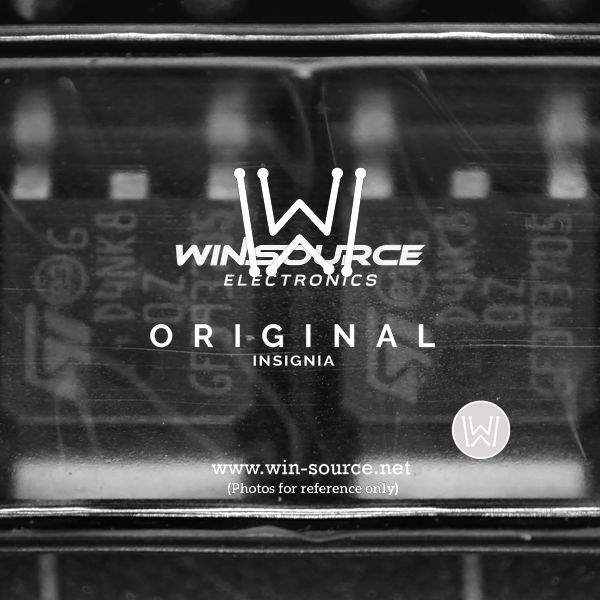

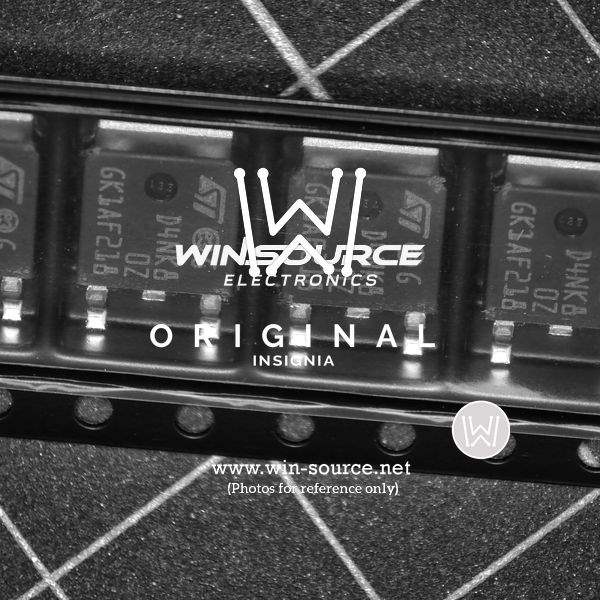

STMicroelectronics STD4NK80ZT4 N-Channel MOSFET

The STD4NK80ZT4 is a high-performance N-Channel MOSFET brought to you by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This MOSFET is designed to deliver efficiency and power handling capabilities suited for a wide range of applications, including switch-mode power supplies, power management systems, and converters.

Key Features

  • Device Type: N-Channel MOSFET
  • Part Number: STD4NK80ZT4
  • Technology: MDmesh™
  • Voltage Rating (V<sub>DS): 800V, providing ample voltage headroom for high-voltage applications.
  • Current Rating (I<sub>D): The device can handle continuous drain currents up to several amperes, ensuring robust performance for a variety of uses.
  • R<sub>DS(on): Low on-resistance, which minimizes conduction losses and improves overall efficiency.
  • Package: DPAK, a surface-mount package that allows for compact design and efficient heat dissipation.
  • Zener-protected: The gate-source is protected by a Zener diode, enhancing the device's robustness against static discharge and voltage spikes.

Applications

The STD4NK80ZT4 is versatile and can be used in a variety of applications where high-efficiency switching and power regulation are required. Typical applications include:

  • LED Lighting
  • Switching regulators
  • Power supplies for servers, telecom, and industrial systems
  • Motor control circuits
  • Power inverters

Performance and Reliability

STMicroelectronics ensures that its products meet the highest standards of performance and reliability. The STD4NK80ZT4 MOSFET benefits from the company's MDmesh™ technology, which combines low on-resistance with high switching speed. This results in a device that not only operates efficiently but also maintains stability and performance over a wide range of operating conditions.

For engineers and designers looking for a reliable and efficient power switching solution, the STD4NK80ZT4 from STMicroelectronics offers a compelling option with its robust design, high voltage capability, and energy-efficient operation.
