Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Current Regulation/Management
Mfr STMicroelectronics
Package Tape & Reel (TR)
Function Electronic Fuse
Voltage - Input 4.5V ~ 8V
Current - Output 2.5A
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)

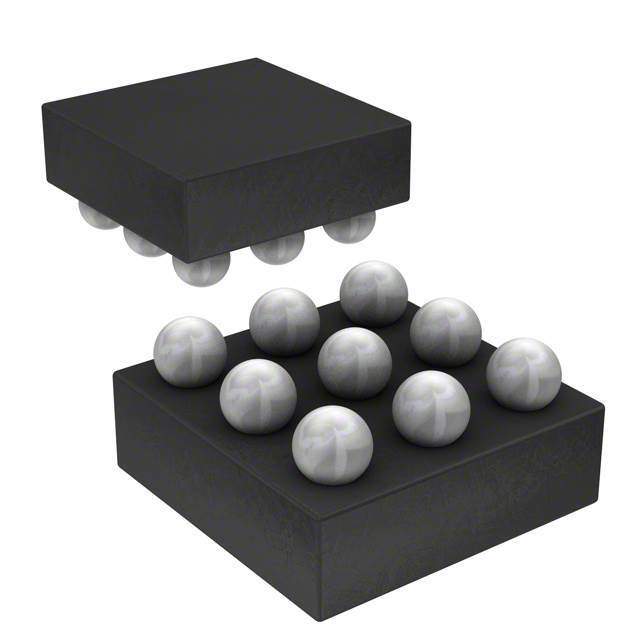

Package / Case 9-UFBGA, FCBGA
Supplier Device Package 9-FlipChip (1.19x1.19)
Base Product Number STEF05
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1253588-STEF05LJR
Ultra Librarian 3D Model Ultra Librarian STEF05LJR CAD Model

Description

STEF05LJR Electronic Fuse by STMicroelectronics

The STEF05LJR is an advanced electronic fuse designed by STMicroelectronics, tailored to provide overcurrent protection in a variety of applications. This high-performance device is engineered to safeguard sensitive electronics by interrupting the flow of excessive current, thereby preventing damage to the circuit components.

Constructed with cutting-edge technology, the STEF05LJR is part of STMicroelectronics' eFuse product line, which is renowned for its reliability and precision. The device operates with an input voltage range from 4.5V to 18V, making it versatile for use in a wide array of electronic systems, from consumer electronics to industrial control units.

One of the standout features of the STEF05LJR is its low power dissipation, which is achieved through an on-resistance of just 50mΩ. This ensures that the device remains efficient even when conducting current during normal operation. Additionally, the electronic fuse is equipped with an adjustable overcurrent protection threshold, which can be set by the user with an external resistor, providing flexibility to match the protection level to the specific needs of the application.

The STEF05LJR also boasts a fast trip time, which is critical for responding to overcurrent events swiftly to minimize the risk of component damage. In the event of a fault condition, the device latches off, and it can be reset either manually or automatically, depending on the configuration. This feature is essential for systems that require a quick recovery after a fault or those that demand a permanent interrupt until the issue is addressed.

For ease of integration into existing designs, the STEF05LJR comes in a compact QFN-12L 3x3 package, which not only saves space on the PCB but also provides excellent thermal performance. The device also includes additional protection features such as overtemperature shutdown, under-voltage lockout, and a status flag output that notifies the system when a fault condition occurs.

Overall, the STEF05LJR from STMicroelectronics represents a robust and flexible solution for circuit protection, ensuring that electronic systems operate safely and reliably under various conditions.
