Products specifications

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Series STM32
Package Bulk
Type Power Management
Function Motor Controller/Driver
Embedded Yes, MCU, 32-Bit
Utilized IC / Part STGIPN3H60, STM32F100
Supplied Contents Board(s)
Base Product Number STEVAL
Other Names 497-12899
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8537.10.9170
Win Source Part Number 1284457-STEVAL-IHM036V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-IHM036V1 CAD Model

Description

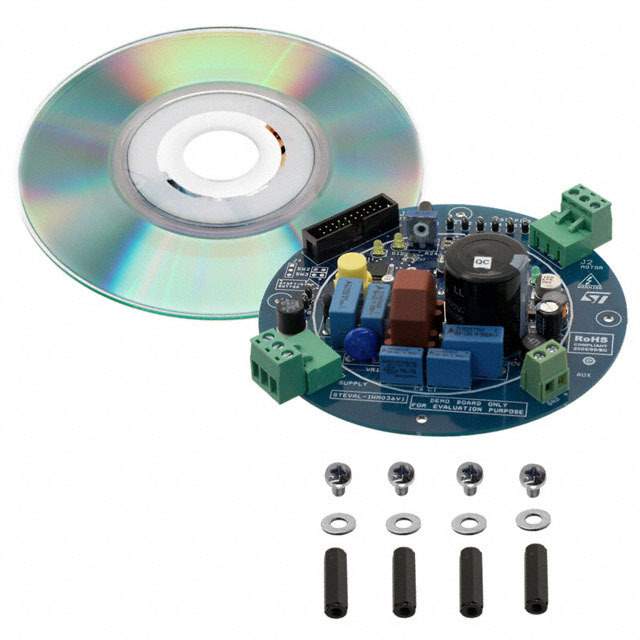

STEVAL-IHM036V1 - STMicroelectronics Motor Control Evaluation Board

The STEVAL-IHM036V1 from STMicroelectronics is a sophisticated evaluation board designed specifically for motor control applications. This board is an essential tool for engineers and developers looking to evaluate the capabilities of STMicroelectronics' advanced motor control ICs and develop applications for a wide range of motor types.

The STEVAL-IHM036V1 is built around the STMicroelectronics L6390 high-voltage gate driver and the STM32F103CB microcontroller. This combination allows for the precise control of a three-phase brushless DC motor (BLDC), providing an optimal solution for those looking to create efficient, reliable, and high-performance motor control systems.

Key features of the STEVAL-IHM036V1 include:

  • Power stage based on the L6390 high-voltage gate driver capable of driving N-channel power MOSFETs or IGBTs.
  • Embedded STM32F103CB microcontroller for robust control and high computation capability.
  • Operational voltage range between 8 V to 52 V, suitable for a wide array of applications.
  • Current sensing based on a precise shunt resistor method for accurate motor phase current measurement.
  • Overcurrent and overvoltage protection features to ensure safe operation under various conditions.
  • Embedded ST-LINK for easy programming and debugging, with support for a wide range of development environments.
  • User-friendly interfaces and connectors for quick setup and integration into existing systems.

The evaluation board is also equipped with a range of connectivity options, including connectors for motor power supply, hall sensors, and encoder inputs, enabling comprehensive testing and development of motor control algorithms. The board's layout is designed for optimal thermal performance and ease of use, with clear labeling and robust construction.

Whether you are developing motor control applications for industrial automation, consumer electronics, or automotive systems, the STEVAL-IHM036V1 evaluation board from STMicroelectronics provides a versatile and powerful platform for your development needs.
