Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer STMicroelectronics
Part Status Obsolete(EOL)
Main Purpose Reference Design, Solar Charger, LED Driver
Embedded Yes, MCU, 32-Bit
Utilized IC / Part STM32F101R
Primary Attributes 25W LED Driver, 80W Battery Charger
Secondary Attributes Automatic Day/Night/Weather Detection, Automatic Battery/Mains Switch Over
Supplied Contents Board(s)
Win Source Part Number 795695-STEVAL-ILL022V1
Popularity Medium
Supply and Demand Status Limited
Family Name STEVAL-ILL022V1
Introduction Date January 08, 2010
ECCN 3A991.a.2
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL022V1 CAD Model

Description

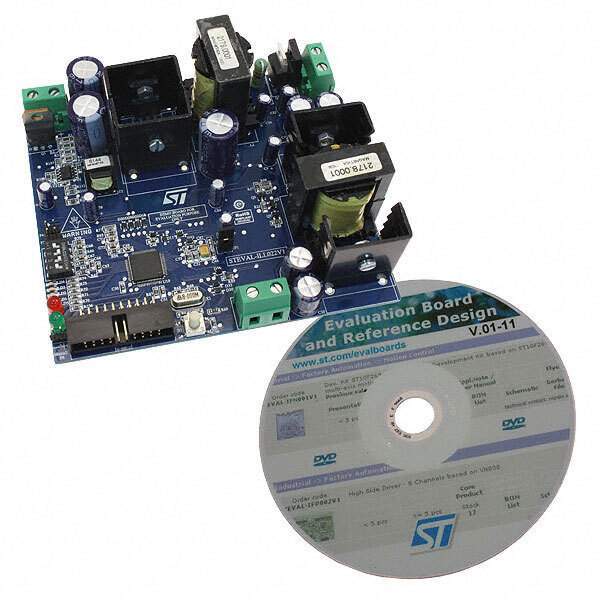

The STEVAL-ILL022V1 is a highly efficient evaluation board designed by STMicroelectronics, tailored for driving LEDs with advanced control features. This evaluation platform is based on the STP04CM05 LED driver, which is capable of providing constant current to ensure uniform brightness for display backlights and other LED lighting applications.

Key Features

  • STP04CM05 LED Driver: The core of the STEVAL-ILL022V1 is the STP04CM05, a 4-channel LED driver that ensures accurate constant current output, which is crucial for maintaining consistent lighting conditions and maximizing the lifespan of LEDs.
  • Adjustable Output Current: Users can easily adjust the output current through external resistors, enabling fine-tuning for various LED configurations and requirements.
  • Wide Input Voltage Range: The board operates over a broad input voltage range, making it versatile for use in multiple applications and scenarios.
  • Thermal Protection: The evaluation board includes thermal shutdown protection, safeguarding the LED driver against overheating and ensuring reliable operation over time.
  • Shift Register and Latch: The inclusion of a shift register and data latch provides excellent control over the LED channels, allowing for precise modulation and dimming capabilities.
  • Low Voltage Operation: Designed for low voltage operation, the board is energy-efficient and suitable for battery-powered applications.

Applications

The STEVAL-ILL022V1 is ideal for a range of lighting applications, including:

  • General LED lighting
  • Display backlights for TVs, monitors, and laptops
  • Automotive interior lighting
  • Decorative and architectural lighting
  • Signage and signal lighting

Why Choose the STEVAL-ILL022V1?

With its robust design and versatile features, the STEVAL-ILL022V1 from STMicroelectronics is an excellent choice for developers and engineers looking to evaluate LED drivers in their projects. Its ease of use, combined with advanced control features, ensures a reliable and customizable solution for a wide array of LED lighting applications.
