Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Outputs and Type 1, Isolated
Voltage - Output 56V
Voltage - Input 90 ~ 264 VAC
Supplied Contents Board(s)
Utilized IC / Part HVLED001A
Base Product Number STEVAL
Other Names -1138-STEVAL-ILL076V2,2266-STEVAL-ILL076V2,497-16878
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1283866-STEVAL-ILL076V2
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL076V2 CAD Model

Description

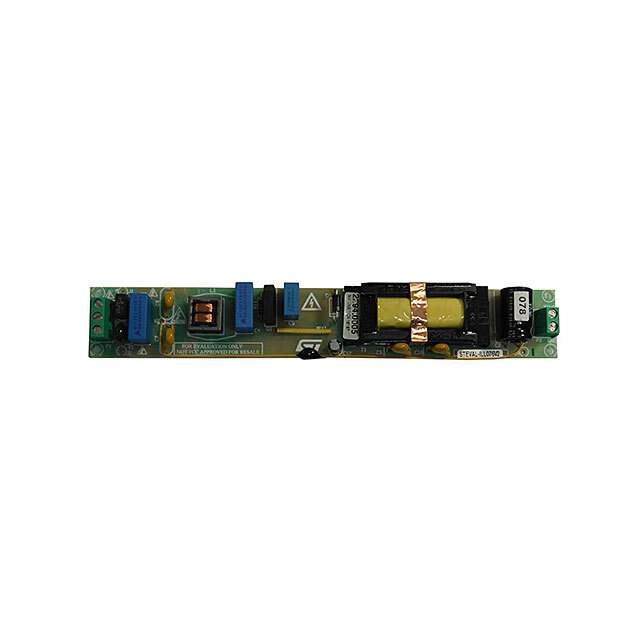

STEVAL-ILL076V2 LED Driver Evaluation Board

The STEVAL-ILL076V2 from STMicroelectronics is a high-performance evaluation board designed for LED lighting applications. This product is part of ST's extensive range of evaluation tools that allow designers to assess the capabilities and performance of various LED drivers in the company's portfolio. The STEVAL-ILL076V2 is specifically tailored for driving LEDs with a highly efficient management system and precise brightness control.

At the heart of the STEVAL-ILL076V2 is the LED6001 chip, a step-down monolithic power factor corrected LED driver capable of delivering up to 3 A of current to the LED load. This integrated driver provides a wide input voltage range, making the board suitable for a variety of LED lighting scenarios, including indoor and outdoor environments, architectural lighting, and signage.

The evaluation board comes with a comprehensive set of features that make it an ideal platform for developing and testing LED lighting solutions. It includes dimming control, which allows for smooth and flicker-free adjustment of the LED brightness. This is particularly important for creating the right ambiance in different settings or for applications where variable lighting is required.

One of the key advantages of the STEVAL-ILL076V2 is its thermal management capabilities. The board is designed with an efficient heat dissipation system to ensure that the LED driver operates within its optimal temperature range, thereby enhancing the longevity of the LEDs and maintaining consistent light output.

Safety features are also embedded in the design of the STEVAL-ILL076V2. Overcurrent, overvoltage, and thermal protection circuits are in place to prevent damage to the board and connected LEDs during abnormal operating conditions. These features ensure that the evaluation board is not only efficient and versatile but also reliable and safe for use in various LED lighting applications.

For developers and engineers looking to expedite their design process, the STEVAL-ILL076V2 offers a user-friendly experience with plug-and-play functionality. Additionally, STMicroelectronics provides extensive documentation and support, including datasheets, application notes, and design guidelines, to facilitate the integration of the evaluation board into a wide range of LED lighting projects.
