Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Type Interface
Function Anti Tamper and Security
Embedded No
Utilized IC / Part STM1403, STM1404, UPSD3422
Primary Attributes Anti-Tampering and Supervisory Solution
Supplied Contents Board(s)
Secondary Attributes Meets Security Standards FIPS-140, EMV Co, ISO, ZKA, and Visa PED
Other Names 497-5677,-497-5677
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3B992
HTSUS 8473.30.1180
Win Source Part Number 1284540-STEVAL-IPA001V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-IPA001V1 CAD Model

Description

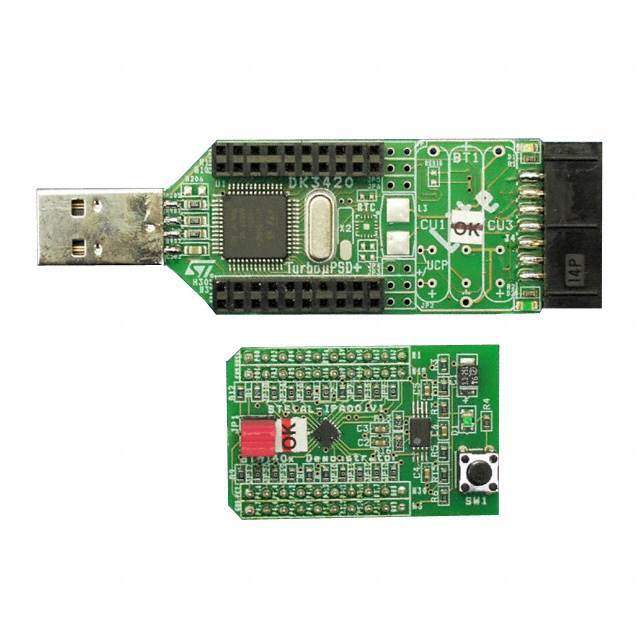

STEVAL-IPA001V1 - Industrial Piezoelectric Actuator Driver Evaluation Board

The STEVAL-IPA001V1 from STMicroelectronics is a state-of-the-art evaluation board designed for driving piezoelectric actuators with precision and efficiency. This innovative product is suited for a wide range of industrial applications, including but not limited to precision positioning systems, piezoelectric pumps, and adaptive optics.

At the heart of the STEVAL-IPA001V1 is the L6398 high-voltage, high and low-side driver, which is capable of driving N-channel power MOSFETs or IGBTs. This driver is renowned for its high-speed operation and minimal power dissipation, making it an excellent choice for demanding applications that require rapid actuator responses and energy efficiency.

The evaluation board is designed to operate over a wide input voltage range, typically from 10.5 V to 55 V, providing the flexibility needed to accommodate different power requirements. It also features a bootstrap diode integrated circuit, ensuring reliable operation during high-frequency switching by providing the necessary gate charge to the high-side MOSFET.

With a user-friendly layout, the STEVAL-IPA001V1 offers accessible test points and jumper settings to easily configure and monitor the board's performance. This makes it an invaluable tool for engineers and developers seeking to rapidly prototype and test their piezoelectric actuator designs.

The board also includes overcurrent and thermal protection features, enhancing the safety and longevity of both the evaluation board and the actuator being driven. These protections ensure that the system operates within safe parameters, preventing damage from unexpected operating conditions.

Complementing its robust hardware features, the STEVAL-IPA001V1 is supported by comprehensive documentation and software tools provided by STMicroelectronics. This includes detailed technical manuals, application notes, and design guides that assist users in maximizing the capabilities of the evaluation board.

In summary, the STEVAL-IPA001V1 evaluation board is a versatile and reliable solution for driving piezoelectric actuators in industrial applications. Its combination of high-performance driving capabilities, flexible power input range, and protective features make it an ideal choice for developers looking to enhance the precision and efficiency of their piezoelectric actuator systems.
