Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer STMicroelectronics
Main Purpose AC/DC, Primary Side
Outputs and Type 1, Isolated
Power - Output 170W
Voltage - Output 24V
Output Current 7A
Voltage - Input 190 ~ 264 VAC
Regulator Topology Flyback
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part L6699, STB13N60M2, STPS20M80CG
Win Source Part Number 795591-STEVAL-ISA132V1
Popularity Medium
Supply and Demand Status Limited
Family Name STEVAL-ISA132V1
ECCN EAR99
Country of Origin Italy
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA132V1 CAD Model

Description

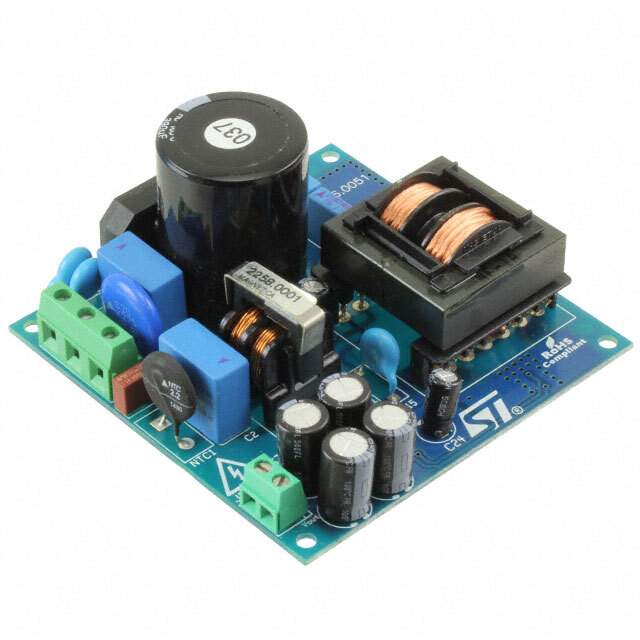

STEVAL-ISA132V1 - STMicroelectronics Evaluation Board

The STEVAL-ISA132V1 is an advanced evaluation board from STMicroelectronics, designed to showcase the performance and features of the VIPer26K high-voltage converter. This compact and versatile board is an excellent tool for engineers and designers looking to evaluate the capabilities of the VIPer26K for their power supply applications.

The VIPer26K is a high-voltage converter that integrates a PWM controller and a 1050 V avalanche-rugged power MOSFET, making it an ideal solution for off-line power supplies. The STEVAL-ISA132V1 evaluation board leverages this chip to offer a flyback converter that provides a reliable and efficient power conversion solution.

Key features of the STEVAL-ISA132V1 evaluation board include:

  • A wide input voltage range from 85 VAC to 265 VAC, allowing for global use without the need for input voltage selection.
  • An output voltage of 12 VDC, which is a common requirement for a multitude of applications, including consumer electronics, industrial control systems, and IoT devices.
  • A maximum output power of up to 12 W, suitable for low to medium power applications.
  • High energy efficiency, which meets modern energy-saving standards and reduces operational costs.
  • Built-in overvoltage, overload, and thermal protection features that ensure the safety and reliability of both the board and the end application.
  • Compact size and minimal external components, which simplify the design and integration process for rapid prototyping and testing.

With its robust design and comprehensive protection features, the STEVAL-ISA132V1 is an excellent choice for developing power supplies that require high reliability and efficiency. Its user-friendly layout and accessible test points make it easy to monitor performance parameters and make necessary adjustments during evaluation.

Whether you are developing power solutions for consumer electronics, industrial systems, or exploring new applications, the STEVAL-ISA132V1 evaluation board from STMicroelectronics provides a flexible and powerful platform to help accelerate your design process and achieve a market-ready product faster.
