Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Series VIPER™
Package Box
Main Purpose AC/DC, Primary Side
Outputs and Type 1, Isolated
Power - Output 15 W
Voltage - Output 12V
Current - Output 1.25A
Voltage - Input 100 ~ 265 VAC
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part VIPer37
Base Product Number STEVAL
Other Names 497-14511
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284174-STEVAL-ISA140V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA140V1 CAD Model

Description

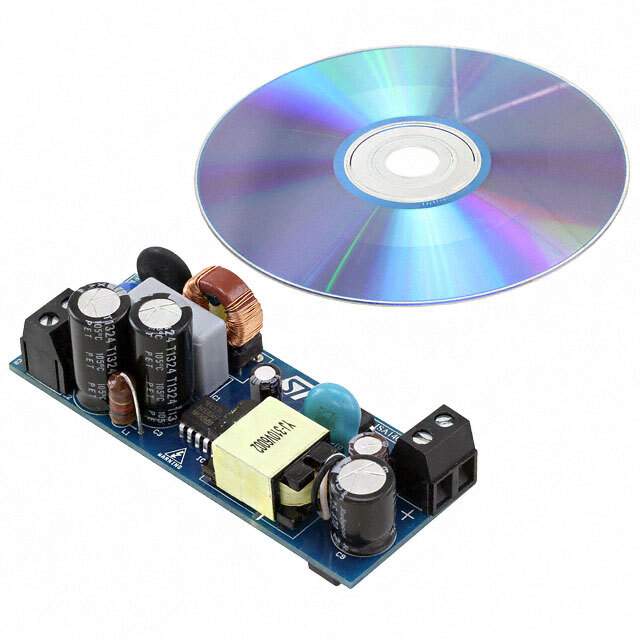

STEVAL-ISA140V1 - STMicroelectronics Evaluation Board

The STEVAL-ISA140V1 is a state-of-the-art evaluation board from STMicroelectronics, designed to provide engineers and developers with a comprehensive platform for testing and evaluating the performance of the L7986A, a highly efficient DC-DC converter. This evaluation board is an indispensable tool for anyone working on power supply solutions, particularly in applications where space is at a premium and energy efficiency is of paramount importance.

Key Features:

  • Integrated L7986A step-down switching regulator
  • Up to 3A of output current
  • Adjustable output voltage from 0.8 V to VIN
  • Wide input voltage range from 4.5 V to 38 V
  • High-efficiency conversion rates, up to 95%
  • 250 kHz switching frequency, adjustable up to 1 MHz
  • Thermal shutdown and overcurrent protection
  • RoHS compliant

Applications:

The STEVAL-ISA140V1 is versatile and can be used in a variety of applications, including but not limited to:

  • Industrial control systems
  • Consumer electronics
  • Telecommunications equipment
  • Automotive and transportation
  • Medical devices

Design and Layout:

The evaluation board boasts an optimized layout that showcases the capabilities of the L7986A regulator. It includes high-quality components that ensure reliable operation under various conditions. The board's design also allows for easy access to all test points, facilitating comprehensive evaluation and debugging.

Support and Documentation:

STMicroelectronics provides extensive support for the STEVAL-ISA140V1, including detailed documentation, application notes, and reference designs. This support ensures that users can quickly integrate the board into their projects and maximize the benefits of the L7986A DC-DC converter's features.

Conclusion:

Whether you're developing power supplies for industrial applications, designing consumer electronics with stringent energy requirements, or working on automotive electronics, the STEVAL-ISA140V1 evaluation board is an excellent resource that combines performance, flexibility, and ease of use in a single package.
