Products specifications

Win Source Part Number Cross
Manufacturer STMicroelectronics
Category Development Boards, Kits, Programmers Evaluation Boards Expansion Boards, Daughter Cards
Packaging  Box
Part Status Active
Platform Professional MEMS Tool
Function Accelerometer
Utilized IC / Part LIS2DH12
Contents Board(s)
Interconnect System DIL24
Win Source Part Number WS1304252-STEVAL-MKI151V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI151V1 CAD Model

Description

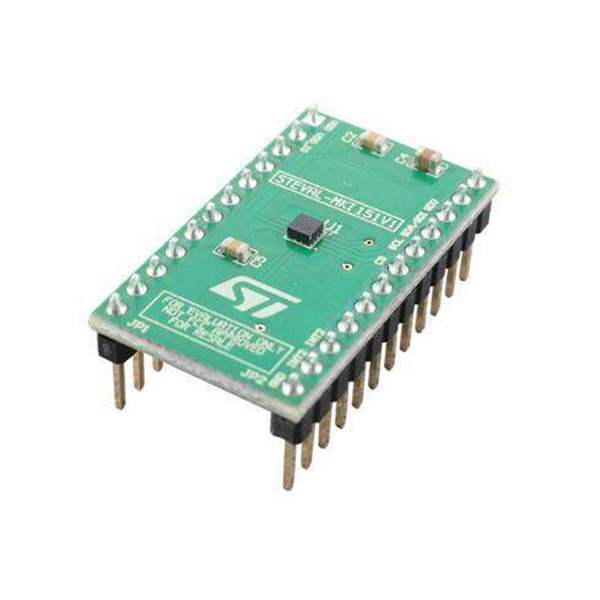

The STEVAL-MKI151V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the LIS2DH12 product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application. The STEVAL-MKI151V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete LIS2DH12 pinout and comes ready-touse with the required decoupling capacitors on the VDD power supply line. This adapter is supported by STEVAL-MKI109V2, which is a motherboard including a highperformance 32-bit microcontroller which functions as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.
