Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Sensor Type Accelerometer, Gyroscope, 3 Axis
Sensing Range ±2g, 4g, 8g, 16g, ±125°/sec, ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec
Interface I2C, SPI
Voltage - Supply 1.71V ~ 3.6V
Embedded No
Supplied Contents Board(s)
Utilized IC / Part ISM330DLC
Other Names 497-17661
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283703-STEVAL-MKI182V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI182V1 CAD Model

Description

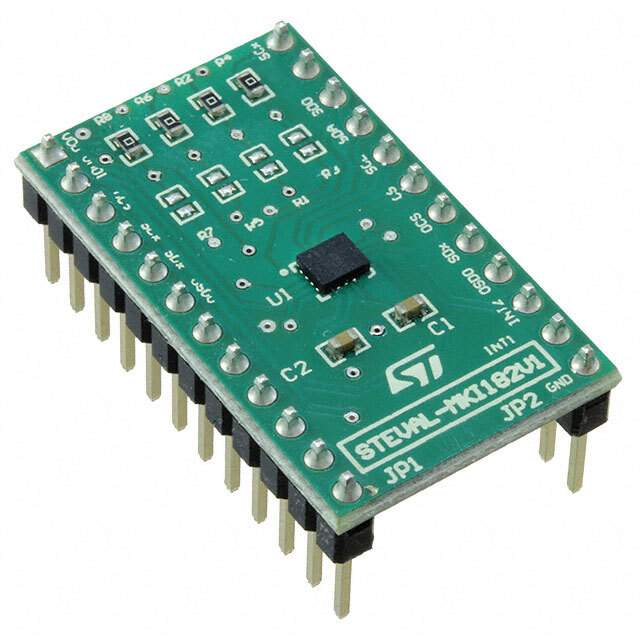

The STEVAL-MKI182V1 is a versatile adapter board designed by STMicroelectronics to facilitate the evaluation and development of various MEMS (Micro-Electro-Mechanical Systems) sensors in the company's extensive product portfolio. This adapter board is part of the STMicroelectronics STEVAL series, which is known for its high-quality development tools aimed at streamlining the design process for engineers and developers.

The STEVAL-MKI182V1 is specifically tailored to work with ST's LGA-24 MEMS sensor adapter boards, allowing for quick and easy connection to an STM32 Nucleo development board. This interoperability is a key feature, enabling rapid prototyping and testing within the expansive STM32 ecosystem.

Equipped with a DIL-24 socket, the STEVAL-MKI182V1 adapter board is capable of hosting any compatible LGA-24 MEMS sensor adapter board. This allows users to evaluate a wide range of sensors, including accelerometers, gyroscopes, magnetometers, and pressure sensors, without the need to design a custom board for each sensor type. The flexibility provided by this system significantly reduces development time and cost.

Firmware libraries and example code are readily available for the STEVAL-MKI182V1, which are designed to work seamlessly with the STM32Cube software development kit. These resources help to further reduce the learning curve and enable developers to focus on their core application development.

The board also features a simple and clean layout, with clearly labeled pins and connectors, making it user-friendly for both novice and experienced developers. Additionally, the STEVAL-MKI182V1 is designed to be powered directly from the Nucleo board, simplifying the setup and eliminating the need for an external power supply.

In summary, the STEVAL-MKI182V1 adapter board from STMicroelectronics is an essential tool for any developer looking to explore the capabilities of ST's MEMS sensors. With its plug-and-play design, extensive sensor compatibility, and strong support resources, it offers an efficient and cost-effective solution for MEMS sensor evaluation and development.
