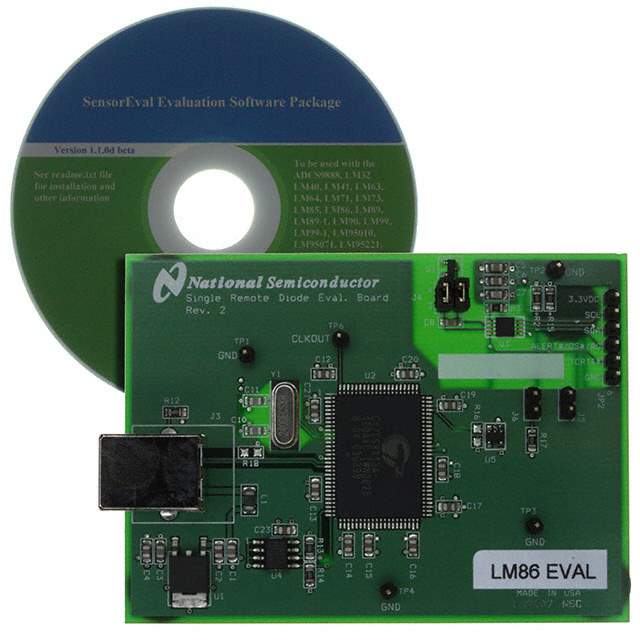

The LM86EVAL/NOPB is a high-performance evaluation board from Texas Instruments, designed for testing and prototyping with the LM86 dual temperature sensor. This sensor is capable of monitoring both its own temperature and the temperature of a remote diode, which can be a transistor or a diode-connected transistor, typically found in CPUs, GPUs, or other ICs.

Key Features

• Dual Temperature Sensing: The LM86 can measure its own temperature and the temperature of a remote diode with high accuracy.
• Wide Temperature Range: The sensor operates over a wide temperature range, making it suitable for various applications.
• Programmable Alert Outputs: It includes programmable overtemperature alert and undertemperature alarm outputs for system protection.
• Easy-to-Use Interface: The evaluation board interfaces with a computer via an I2C/SMBus, enabling easy data logging and parameter adjustment.
• Software Support: Comes with software that provides a user-friendly interface for data monitoring and control.

Applications

The LM86EVAL/NOPB is ideal for a range of applications, including:

• System thermal management
• Personal computers and servers
• Electronic test equipment
• Industrial controls

Why Choose the LM86EVAL/NOPB?

With its precision temperature monitoring and flexible alert system, the LM86EVAL/NOPB is an essential tool for engineers and designers who require reliable thermal data to optimize system performance and safety. The evaluation board is also a valuable educational resource for students and hobbyists looking to enhance their understanding of temperature sensing technologies.

Getting Started

The LM86EVAL/NOPB evaluation board is easy to set up and use, with minimal external components required. It comes with comprehensive documentation and support materials to help users quickly begin prototyping and testing their temperature sensing solutions.
