Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Current - Output / Channel 1.2A
Outputs and Type 1, Non-Isolated
Features Camera Flash and Torch Modes, Dimmable, I²C Interface
Voltage - Input 2.7V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part STCF04
Other Names 497-14130,-497-14130
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283841-STEVAL-TLL008V2
Ultra Librarian 3D Model Ultra Librarian STEVAL-TLL008V2 CAD Model

Description

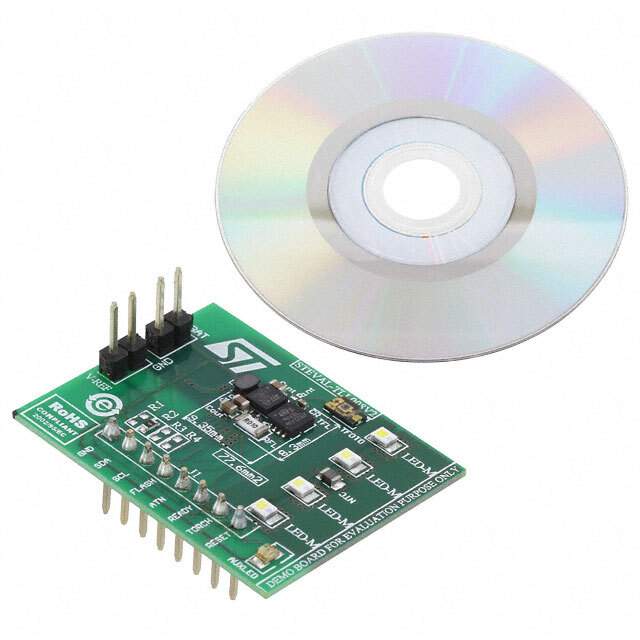

STEVAL-TLL008V2 - LED Array Driver Evaluation Board by STMicroelectronics

The STEVAL-TLL008V2 is a state-of-the-art evaluation board designed by STMicroelectronics, specifically tailored for driving LED arrays. This advanced evaluation platform is built around the STP16CPPS05, a low voltage 16-bit constant current LED sink driver, which is part of ST's LED display driver portfolio. The board is an ideal solution for developers looking to create sophisticated LED lighting systems, offering both versatility and high performance.

One of the key features of the STEVAL-TLL008V2 is its ability to provide constant current output, which is adjustable from 5 mA up to 100 mA, ensuring uniform brightness across all connected LEDs. This feature is crucial for applications requiring consistent light output and color stability. The board also supports error detection, which is vital for maintaining the reliability and longevity of the LED array.

The evaluation board is designed with flexibility in mind, allowing users to cascade multiple boards for larger LED array configurations, thanks to its serial data output pin. This makes the STEVAL-TLL008V2 an excellent choice for scalable applications, ranging from small indicators to large digital billboards.

For ease of use, the STEVAL-TLL008V2 includes an embedded mini-USB connector, which provides a convenient way to interface with a PC for programming and control purposes. The board is also equipped with an external quad flat package (QFP), which allows for direct connection to the LED array, simplifying the prototyping and development process.

Furthermore, the STEVAL-TLL008V2 supports a wide range of power supply voltages from 3.3V to 5V, making it compatible with various logic levels and suitable for battery-operated devices. Its thermal shutdown and over-temperature protection features ensure safe operation under varying environmental conditions.

Whether you are developing innovative LED lighting solutions, customizable displays, or any application requiring reliable and precise LED control, the STEVAL-TLL008V2 evaluation board from STMicroelectronics offers the performance, flexibility, and ease of use necessary to bring your projects to light.
