Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Features Dimmable
Voltage - Input 5V
Supplied Contents Board(s)
Utilized IC / Part STM32F103C6, STCS1A
Other Names STEVALILL030V1,497-11035
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8473.30.1180
Win Source Part Number 1283848-STEVAL-ILL030V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL030V1 CAD Model

Description

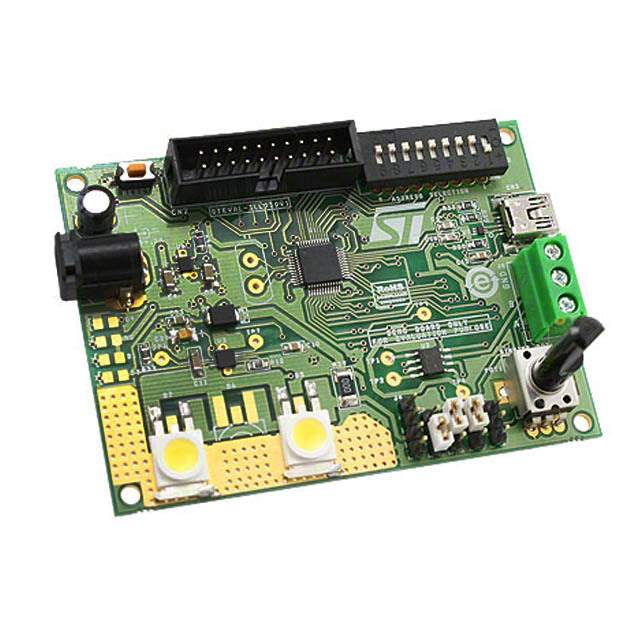

The STEVAL-ILL030V1 from STMicroelectronics is a sophisticated evaluation platform designed for those seeking to develop advanced LED lighting solutions. This evaluation board is specifically engineered to demonstrate the capabilities of the LED6000 step-down monolithic switching regulator, which is tailored for driving an array of high-brightness LEDs with a maximum current of up to 3 A.

Key Features

  • Integrated LED6000 step-down monolithic power regulator
  • Wide input voltage range from 4.5 V to 38 V
  • Adjustable output current up to 3 A
  • High efficiency of up to 95%, ensuring minimal power loss
  • PWM dimming and analog dimming control
  • Overcurrent and thermal protection for enhanced safety
  • Flexible power supply options suitable for various applications
  • RoHS compliant and designed for energy-saving applications

Applications

The STEVAL-ILL030V1 is versatile and can be utilized in a wide range of applications, including:

  • General-purpose LED lighting
  • Architectural LED lighting
  • LED backlighting for LCD TVs and monitors
  • Street lighting and outdoor LED applications
  • Emergency lighting and signage

Design Advantages

This evaluation board offers designers a quick and efficient way to test and fine-tune their LED applications. The onboard LED6000 ensures a compact and reliable design, reducing the need for external components. With its high level of integration and user-friendly features, the STEVAL-ILL030V1 enables rapid prototyping and accelerates the development cycle for LED lighting systems.

Environmental Impact

STMicroelectronics is committed to delivering environmentally friendly products. The STEVAL-ILL030V1 is RoHS compliant and supports energy-efficient lighting solutions that contribute to energy savings and carbon footprint reduction.
