Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 1500V (1.5kV)
Continuous Drain Current at 25°C 2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 29.3nC @ 10V
Max Input Capacitance 939pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 63W (Tc)
Maximum Rds On at Id,Vgs 9 Ohm @ 1.3A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole

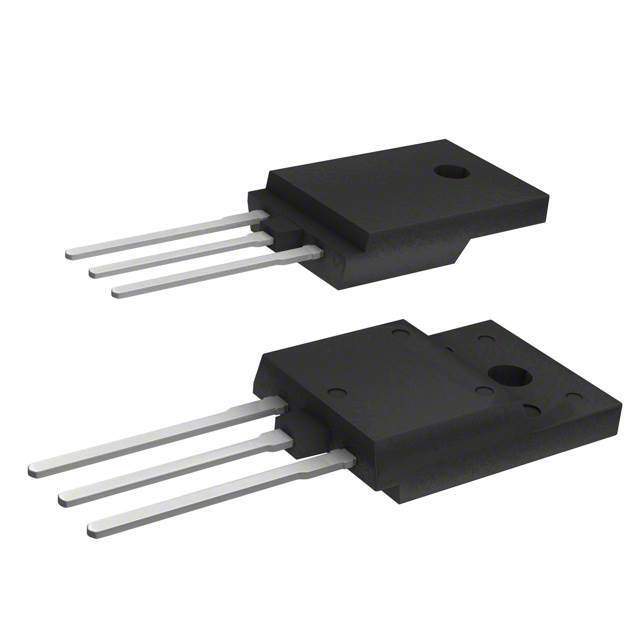

Case / Package TO-3PF
Dimension TO-3P-3 Full Pack
Win Source Part Number 089526-STFW3N150
Family Name STW3N150
Introduction Date January 12, 2007
ECCN EAR99
Country of Origin Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2026
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian STFW3N150 CAD Model

Description

The STFW3N150 from STMicroelectronics is a cutting-edge power MOSFET designed to meet the rigorous demands of high voltage applications. This component is a key enabler in the efficiency and reliability of a wide range of power conversion systems.

Key Features

  • High Voltage Capability: With a drain-source voltage (V<sub>DS) of 1500V, the STFW3N150 is well-suited for applications that require high voltage operations, ensuring safe and reliable performance under extreme conditions.
  • Low On-Resistance: The on-resistance (R<sub>DS(on)) is minimized to increase efficiency in power conversion, reducing energy losses during operation and enhancing overall system performance.
  • Fast Switching: The device is optimized for fast switching, which is crucial for reducing switching losses and improving the efficiency of power supplies and converters.
  • High Current Capability: It is capable of handling continuous drain currents (I<sub>D), providing robustness and reliability for high power density applications.
  • Enhanced Ruggedness: The MOSFET's robust design ensures that it can withstand harsh conditions, making it ideal for industrial and automotive applications where reliability is paramount.

Applications

The STFW3N150 is versatile and can be used in various high voltage applications, including:

  • Switch Mode Power Supplies (SMPS)
  • High Voltage DC-DC Converters
  • Welding Equipment
  • Uninterruptible Power Supplies (UPS)
  • Lighting Ballasts
  • Inductive Heating
  • Electric Vehicle (EV) Chargers

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The STFW3N150 is designed and manufactured to meet the highest standards of quality and reliability, ensuring long-term performance in critical applications.

Environmental Compliance

The STFW3N150 is compliant with various environmental regulations, including RoHS and REACH, reflecting STMicroelectronics' dedication to environmental sustainability and the production of eco-friendly products.
