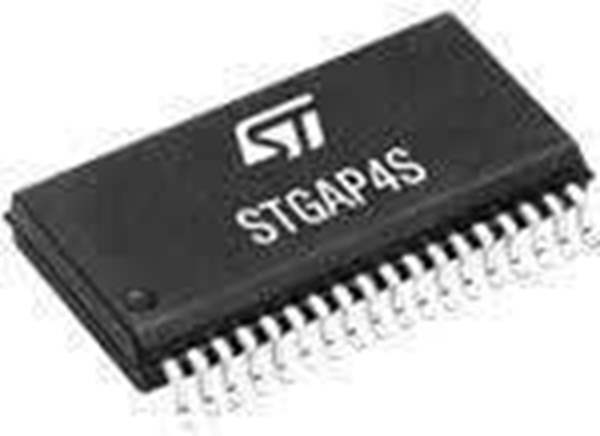

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1309428-STGAP4STR
Category Isolators -Isolators - Gate Drivers
Mfr STMicroelectronics
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Technology Optical Coupling
Number of Channels 1
Common Mode Transient Immunity (Min) 100V/ns
Pulse Width Distortion (Max) 30ns
Rise / Fall Time (Typ) 15ns, 45ns
Current - Peak Output 3.4A
Ultra Librarian 3D Model Ultra Librarian STGAP4STR CAD Model

Description

  • Active Miller clamp driver for external N‑channel MOSFET
  • Programmable Desaturation detection
  • Programmable Overcurrent detection
  • Soft turn-off
  • VCE active clamp
  • Two diagnostic status outputs
  • Programmable UVLO and OVLO on each supply
  • Programmable input deglitch filter
