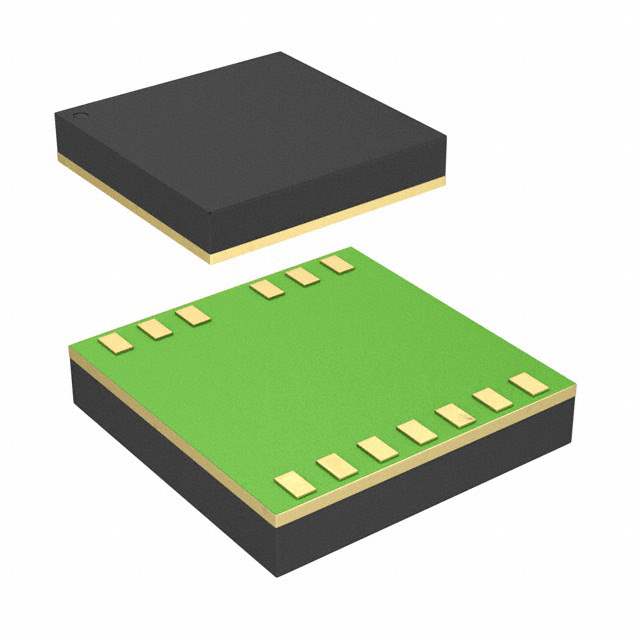

Product Overview: Texas Instruments UCC21225ANPLR

The UCC21225ANPLR is a robust, feature-rich isolated dual-channel gate driver designed by Texas Instruments to offer exceptional performance in driving power switches. This device is part of TI's UCCx series, renowned for its reliability and efficiency in power management applications. The UCC21225ANPLR is particularly suitable for driving IGBTs and SiC MOSFETs, making it an ideal choice for high-performance power conversion systems.

Key Features

• Isolation: The UCC21225ANPLR provides reinforced isolation rated at 5.7 kV RMS for 1 minute per UL 1577. This ensures safe operation by preventing high voltages from reaching the control side of the circuit.
• Dual-Channel: Each device includes two independent gate drivers, simplifying designs that require dual-channel operation and saving board space.
• High Drive Strength: The gate drivers can source and sink peak currents of up to 4 A, delivering the power necessary to switch power transistors efficiently.
• Wide Supply Voltage Range: The UCC21225ANPLR operates with a supply voltage range from 14 V to 18 V, accommodating various system designs.
• Extended Temperature Range: This device is operational over an industrial temperature range from -40°C to +125°C, ensuring reliability in harsh environments.

Applications

The UCC21225ANPLR is versatile and can be used in a wide array of applications, including:

• Motor drives
• Power inverters and converters
• Renewable energy systems
• Uninterruptible power supplies (UPS)
• Industrial power supplies

Additional Benefits

The UCC21225ANPLR integrates several protective features to enhance system safety and reliability. These include UVLO (Under-Voltage Lock-Out) for both IGBT/MOSFET and VDD, over-temperature shutdown, and fault reporting. The device also offers a split output configuration that allows for the optimization of turn-on and turn-off times to minimize switching losses.

With its combination of performance, integration, and protection features, the UCC21225ANPLR from Texas Instruments is an excellent choice for designers looking to improve the efficiency and reliability of their power management systems.
