Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 110A
Current - Collector Pulsed (Icm) 180A
Vce(on) (Maximum) at Vge, Ic 2.6V at 15V, 40A
Maximum Power 278W
Switching Energy 365μJ (on), 560μJ (off)
Input Type Standard
Gate Charge 195nC
Td (on/off) at 25°C 52ns/240ns
Test Condition 390V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr) 55ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole

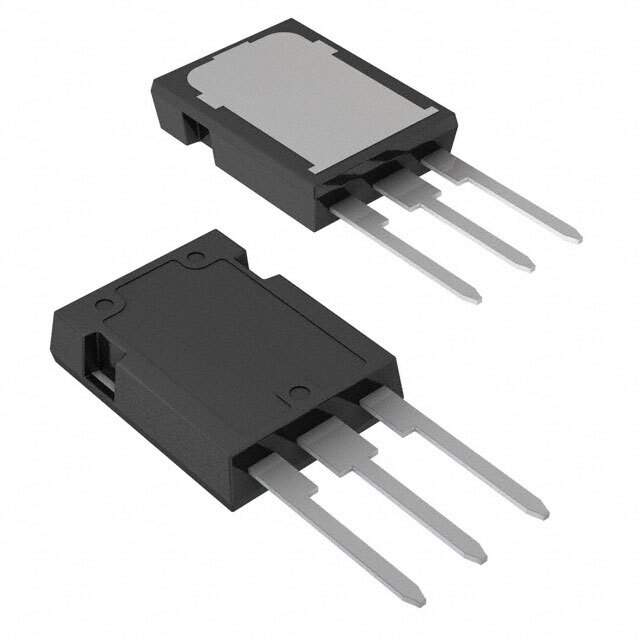

Manufacturer Package TO-247-3
Supplier Device Package MAX247
Family Part Number STG*50NC
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1261061-STGY50NC60WD
Manufacturer Homepage www.st.com
Family Name STGY50NC60WD
Introduction Date July 11, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STGY50NC60WD CAD Model

Description

The STGY50NC60WD is a high-performance insulated gate bipolar transistor (IGBT) manufactured by STMicroelectronics, a leader in the semiconductor industry. This IGBT is designed to offer a combination of high efficiency and fast switching, making it suitable for a wide range of power applications, including motor drives, uninterruptible power supplies (UPS), and power inverters.

Key Features

  • High Current Capability: This IGBT is capable of handling continuous currents up to 50A, and pulsed currents significantly higher, making it suitable for high-power applications.
  • High Voltage Rating: With a maximum collector-emitter voltage of 600V, the STGY50NC60WD can be used in circuits with high operating voltages, providing a wide safety margin.
  • Low On-State Voltage Drop (Vce(sat)): The device exhibits a low on-state voltage drop, which contributes to improved efficiency by minimizing conduction losses.
  • Fast Switching Speed: The fast switching characteristics of this IGBT reduce switching losses and allow for higher frequency operation, which can lead to smaller and more efficient circuit designs.
  • Co-Packaged with Free Wheeling Diode: The IGBT comes with an integrated fast recovery diode, which provides protection against reverse voltage transients and reduces the need for additional external components.

Applications

  • High-frequency inverters
  • Motor control systems
  • Power supply units
  • Welding equipment
  • Inductive heating

Reliability and Performance

The STGY50NC60WD is built with STMicroelectronics' advanced IGBT technology, which ensures high reliability and performance under a broad range of operating conditions. The device is also characterized by its robustness and stability over time, making it a dependable choice for critical power applications.

For engineers and designers looking for a high-performance IGBT that can handle demanding power tasks, the STGY50NC60WD from STMicroelectronics offers an excellent blend of features and specifications, ensuring both efficiency and durability in challenging environments.
