IXGA20N120 IXYS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

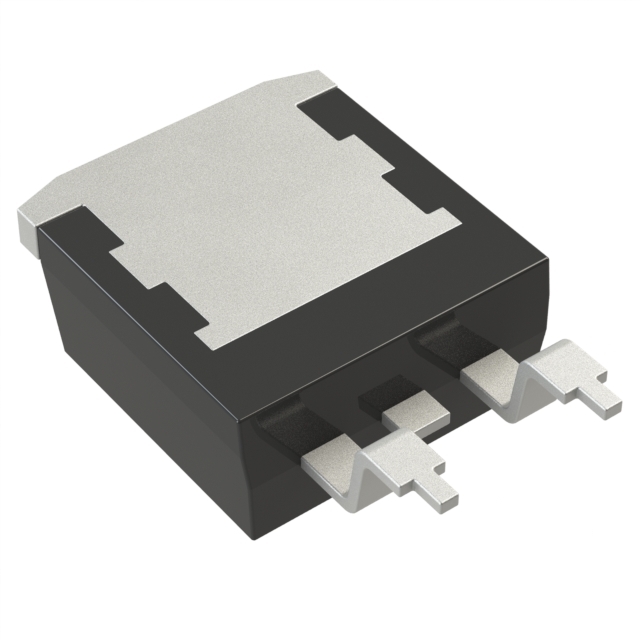

IXGA20N120

Part No IXGA20N120
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT PT 1200V 40A TO-263AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsIGBTsSingle IGBTs
Manufacturer IXYS
Packaging Tube
Part Status Active
IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 40 A
Current - Collector Pulsed (Icm) 80 A
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 20A
Power - Max 150 W
Switching Energy 6.5mJ (off)
Input Type Standard
Gate Charge 63 nC
Td (on/off) @ 25°C 28ns/400ns
Test Condition 800V, 20A, 47Ohm, 15V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AA
Base Product Number IXGA20
Ultra Librarian 3D Model Ultra Librarian IXGA20N120 CAD Model
