Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F3
Package Tray
Core Processor ARM® Cortex®-M4
Core Size 32-Bit Single-Core
Speed 72MHz
Connectivity CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
Peripherals DMA, I2S, POR, PWM, WDT
Number of I/O 51
Program Memory Size 384KB (384K x 8)
Program Memory Type FLASH
RAM Size 64K x 8
Supply Voltage - Operating 2V ~ 3.6V
Data Converters A/D 16x12b; D/A 1x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 64-LQFP
Supplier Device Package 64-LQFP (10x10)
Base Product Number STM32F302
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names STM32F302RDT7-ND,497-19169
Standard Package 160
Win Source Part Number 1097092-STM32F302RDT7
Ultra Librarian 3D Model Ultra Librarian STM32F302RDT7 CAD Model

Description

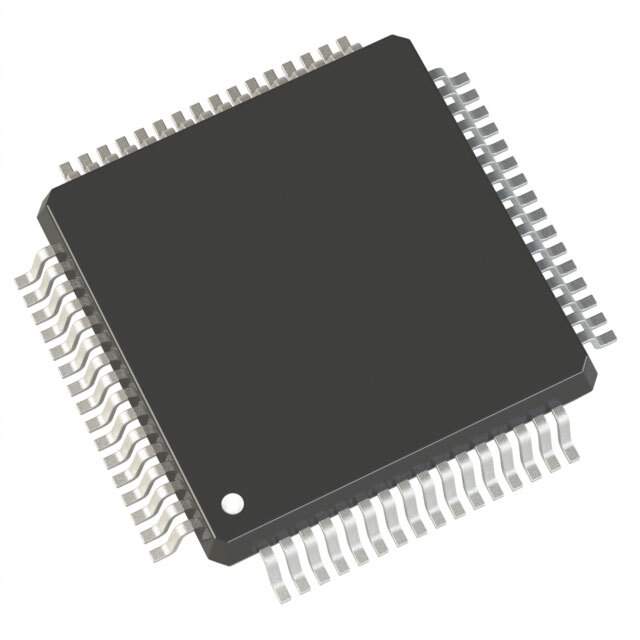

STM32F302RDT7 Microcontroller

The STM32F302RDT7 is a cutting-edge microcontroller unit (MCU) from STMicroelectronics, which is part of their STM32F3 series. This series is renowned for its high-performance ARM Cortex-M4 core with a floating-point unit (FPU), making it ideal for a wide range of applications, including industrial control, medical equipment, and consumer electronics.

At the heart of the STM32F302RDT7 is a 32-bit Cortex-M4 core that can run up to 72 MHz, providing the computational power required for complex algorithms and control systems. The FPU further enhances the capability of this MCU, allowing for efficient handling of floating-point operations which are essential in digital signal processing and control applications.

This microcontroller comes with a rich set of peripherals. It includes multiple timers, communication interfaces such as I2C, SPI, and USART, which are essential for sensor integration and data communication with other devices. Additionally, it offers USB support, which is increasingly important for modern devices requiring connectivity.

One of the key features of the STM32F302RDT7 is its advanced control peripherals including motor control timers and a high-resolution timer which are specifically designed for high-precision control applications. These features make it an excellent choice for applications such as motor control, power management, and advanced lighting systems.

The STM32F302RDT7 also provides robust analog capabilities with fast 12-bit analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and comparators, allowing for precise sensor readings and control signal generation. The integrated operational amplifiers can be used for signal conditioning, reducing the need for external components and simplifying design.

From a design perspective, the STM32F302RDT7 is available in a 64-pin LQFP package, which strikes a balance between compactness and accessibility to the MCU's I/Os. With up to 384 KB of flash memory and 40 KB of SRAM, there is ample space for application code and data storage. Additionally, the MCU features a flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories.

STMicroelectronics provides comprehensive software support for the STM32F302RDT7 through their STM32Cube ecosystem, which includes HAL libraries, middleware, and examples that accelerate development and ensure a smooth path from prototyping to production.
