Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 209MHz, 650MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps, GbE
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Security Features ARM TZ

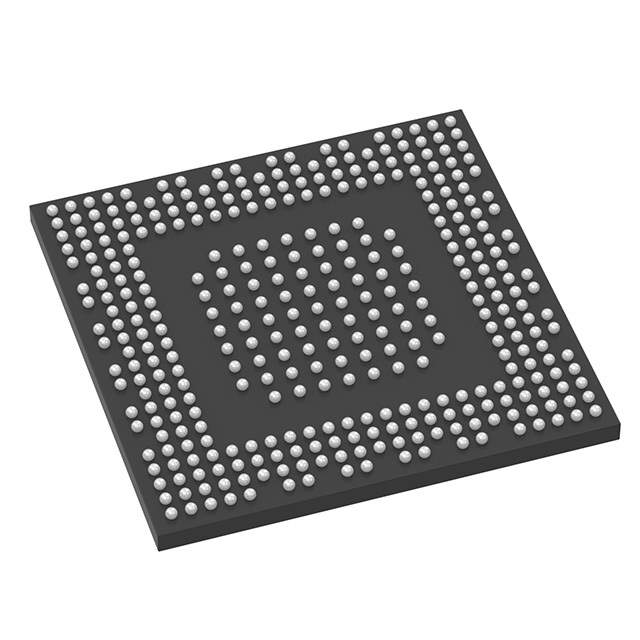

Package / Case 354-LFBGA
Supplier Device Package 354-LFBGA (16x16)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Other Names 497-19498
Standard Package 84
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.39.0001
Win Source Part Number 1261855-STM32MP157AAB3
Ultra Librarian 3D Model Ultra Librarian STM32MP157AAB3 CAD Model

Description

STM32MP157AAB3 Microprocessor

The STM32MP157AAB3 is a high-performance, dual-core microprocessor from STMicroelectronics, which is part of the STM32 family renowned for its rich feature set and versatility in various applications. This microprocessor integrates two ARM Cortex-A7 cores operating at up to 800 MHz and a Cortex-M4 core operating at up to 209 MHz, making it an ideal choice for a wide range of industrial, consumer, and medical applications.

Key Features:

  • Dual ARM Cortex-A7 Cores: Provides the power and efficiency needed for complex applications, with the ability to run a rich operating system like Linux.
  • Cortex-M4 Core: Dedicated for real-time tasks and allows for easy integration with existing STM32 ecosystems.
  • 3D Graphics Processing Unit (GPU): Equipped with a Vivante® - OpenGL ES 2.0 to handle graphical user interfaces and applications with 3D graphics requirements.
  • Advanced Peripherals: Includes a wide range of I/Os and peripherals such as multiple UARTs, I2C, SPI, CAN, and USB interfaces, enabling connectivity with various external modules and devices.
  • Security Features: Comes with hardware cryptographic acceleration, secure boot, and TrustZone® for ARMv7-M to ensure the security of applications.
  • Power Efficiency: The dynamic voltage scaling and power-saving modes make it suitable for applications where power efficiency is crucial.

Applications:

The STM32MP157AAB3 is designed to cater to a broad range of applications, from IoT devices and smart home controllers to industrial automation systems and medical equipment. Its ability to support high-level operating systems and real-time control tasks makes it a versatile choice for developers looking to create sophisticated, multi-functional devices.

Development Support:

STMicroelectronics provides extensive support for the STM32MP157AAB3 through the STM32Cube software development kit (SDK), which includes HAL libraries, middleware components, and examples to accelerate the development process. Additionally, the microprocessor is supported by a vibrant community and a variety of development boards, making prototyping and productization more accessible.
