Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 170V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Max) @ If 920mV @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 10μA @ 170V
Operating Temperature - Junction 175°C (Max)
Mounting SMD (SMT)
Case / Package D-Pak
Win Source Part Number 031480-STPS10170CB-TR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name STPS10170C
Introduction Date July 13, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian STPS10170CB-TR CAD Model

Description

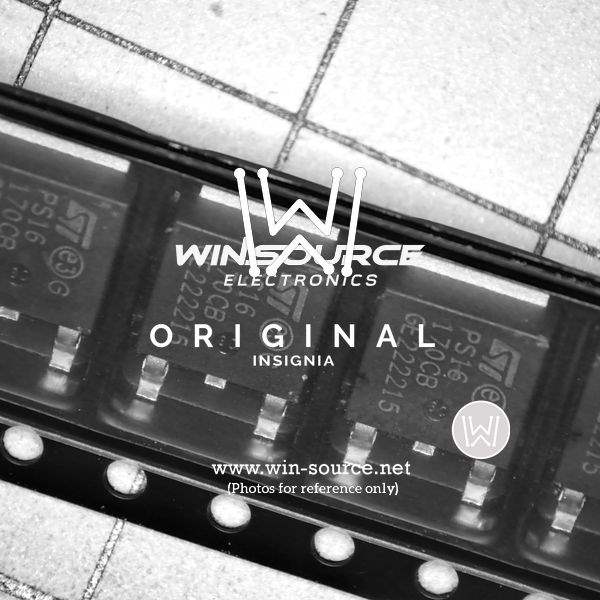

STPS10170CB-TR Power Schottky Rectifier

The STPS10170CB-TR is a robust and efficient power Schottky rectifier designed and manufactured by STMicroelectronics, a leader in semiconductor solutions. This component is specifically engineered to meet the demands of high-performance applications requiring low forward voltage drop and high surge current capability. It is widely used in switch-mode power supplies, converters, free-wheeling diodes, and reverse battery protection applications.

The STPS10170CB-TR belongs to the STPS series of power Schottky rectifiers, which are known for their exceptional efficiency and reliability. With a maximum average forward current of 10 A and a repetitive peak reverse voltage of 170 V, this device is capable of handling high current and voltage requirements with ease. Its low forward voltage drop ensures reduced power losses and improved system efficiency, which is critical in power management applications.

Constructed with STMicroelectronics' advanced Schottky technology, the STPS10170CB-TR is packaged in a TO-252 (DPAK) surface-mount package, which offers a compact footprint and excellent power dissipation characteristics. The package is designed for easy integration into various circuit designs, providing designers with flexibility and convenience in PCB layout.

Key features of the STPS10170CB-TR include:

  • High junction temperature capability: This ensures stability and reliability over a wide temperature range, making it suitable for operation in harsh environments.
  • Low leakage current: Minimizes power loss when the diode is in the reverse-biased state, contributing to overall energy savings.
  • Guard ring for enhanced ruggedness and long-term reliability: The guard ring design provides protection against excessive voltage spikes and enhances the device's robustness.
  • Compliance with environmental standards: The STPS10170CB-TR is RoHS compliant and free from hazardous substances, reflecting STMicroelectronics' commitment to environmental sustainability.

Whether you are designing power supplies for consumer electronics, industrial systems, or automotive applications, the STPS10170CB-TR offers a combination of high efficiency, reliability, and compact design that can help you achieve your design goals.
