Products specifications

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 44 Weeks
Features Diode Schottky 60 V 1A Surface Mount SOD-123F
Manufacturer STMicroelectronics
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package SOD-123F
Case / Package SOD-123F
Family Name STPS1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 497-17151-6, 497-17151-1, 497-17151-2
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 898354-STPS1L60ZF
Ultra Librarian 3D Model Ultra Librarian STPS1L60ZF CAD Model

Description

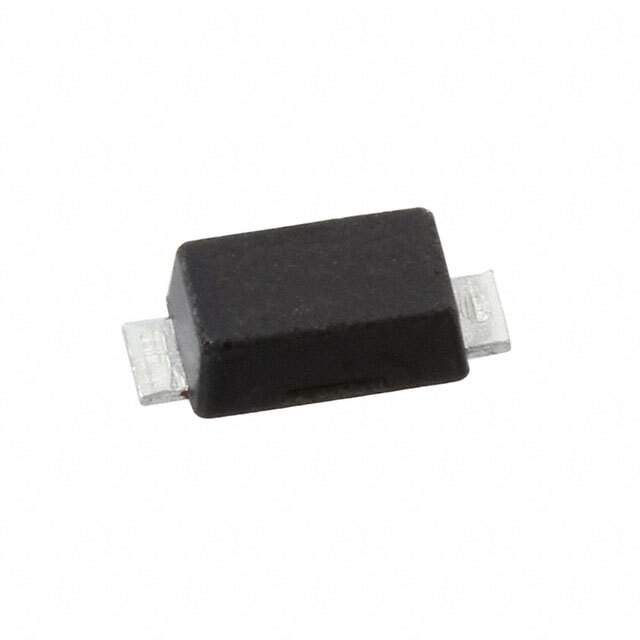

STPS1L60ZF - Schottky Rectifier from STMicroelectronics

The STPS1L60ZF is a robust and efficient Schottky rectifier designed by STMicroelectronics, a leader in the semiconductor industry. This high-performance component is well-suited for a variety of applications, particularly in the power management domain, where low forward voltage drop and minimized power losses are critical.

Key Features

  • Average Forward Current: The device boasts a high average forward current of 1 A, making it suitable for handling moderate power requirements in electronic circuits.
  • Low Forward Voltage Drop: With a low forward voltage drop, the STPS1L60ZF ensures high efficiency in power conversion, leading to energy savings and reduced heat generation.
  • High Junction Temperature: The component can operate at a high junction temperature, up to 150°C, which allows for reliable performance even under thermal stress.
  • Surface Mount Package: The STPS1L60ZF comes in a PowerFLAT™ 5x6 package, which is compact and suitable for surface mount technology (SMT), providing space-saving advantages on printed circuit boards (PCBs).

Applications

The versatility of the STPS1L60ZF makes it an excellent choice for a wide range of applications, including:

  • Switching power supplies
  • Adapters and on-board DC/DC converters
  • Free-wheeling diodes in power supplies and DC/DC converters
  • Reverse battery protection circuits

Performance and Reliability

STMicroelectronics ensures that the STPS1L60ZF meets the highest quality and performance standards. The device is characterized by its low leakage current and excellent stability, which is maintained over its entire operating temperature range. Its fast switching capabilities also make it an ideal choice for high-frequency applications.

For engineers and designers looking for a reliable and efficient Schottky rectifier, the STPS1L60ZF represents a superior option that combines performance with the trusted manufacturing expertise of STMicroelectronics.
