Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr STMicroelectronics
Series Automotive, AEC-Q101, ECOPACK®2
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 790 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 µA @ 100 V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case SOD-128
Supplier Device Package SOD128Flat
Operating Temperature - Junction -40°C ~ 175°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1379998-STPS2H100AFY
Ultra Librarian 3D Model Ultra Librarian STPS2H100AFY CAD Model

Description

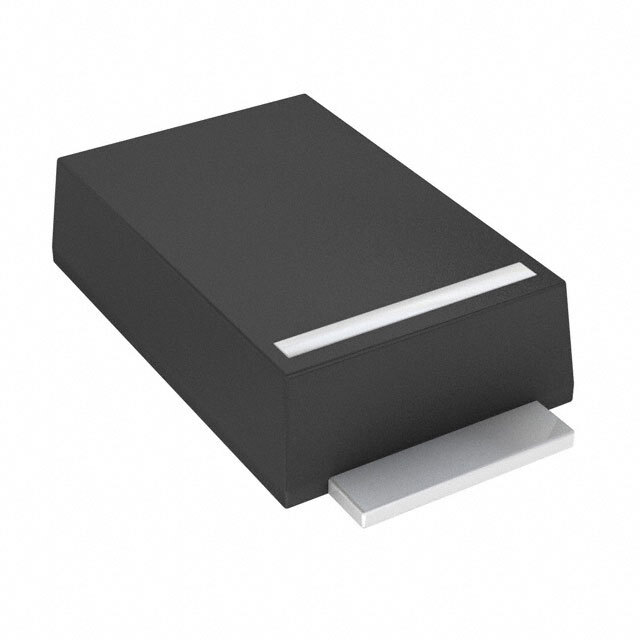

The STPS2H100AFY is a robust power Schottky rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This component is engineered to provide high-efficiency power conversion in a wide array of electronic applications. Its high current capability and low forward voltage drop are key features that make it an ideal choice for high-frequency inverters, freewheeling diodes, and polarity protection applications.

Manufactured with a Schottky barrier technology, the STPS2H100AFY is capable of handling a continuous forward current of up to 2 A, which is significant for its compact size. The device comes in a fully insulated package that not only simplifies PCB design with easier mounting but also offers improved safety by ensuring electrical isolation from the printed circuit board.

With a maximum repetitive peak reverse voltage (VRRM) of 100 V, this Schottky rectifier is suitable for high voltage operations, and its low leakage current enhances its efficiency, especially in low power consumption scenarios. The STPS2H100AFY also boasts a junction temperature range from -40°C to +150°C, making it resilient and reliable across various environmental conditions.

The fast-switching capabilities of the STPS2H100AFY reduce the energy loss during operation and improve the overall performance of the end application. This, combined with its low thermal resistance, allows for better thermal management and stability of the device over time.

This power rectifier is packaged in an SMBflat-3L, which is not only space-efficient but also provides excellent power dissipation. This package is designed for optimal thermal coupling, ensuring that the device can handle the thermal challenges of modern electronic circuits.

The STPS2H100AFY from STMicroelectronics is a testament to the company's commitment to providing power-efficient, high-performance components for the electronics industry. With its advanced features and reliable performance, this power Schottky rectifier is an excellent choice for designers looking to enhance the efficiency and longevity of their applications.
