Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Package Tape & Reel
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 25 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 450 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 90 µA @ 25 V
Mounting SMD (SMT)
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAflat Notch
Operating Temperature - Junction 150°C
Base Product Number STPS2
Other Names 497-STPS2L25AFNCT,497-STPS2L25AFNTR,497-STPS2L25AFNDKR
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282070-STPS2L25AFN
Ultra Librarian 3D Model Ultra Librarian STPS2L25AFN CAD Model

Description

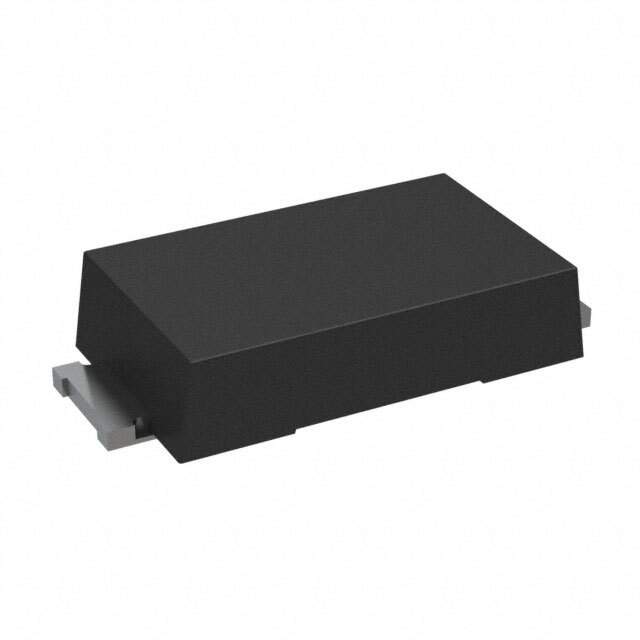

STPS2L25AFN Schottky Diode by STMicroelectronics

The STPS2L25AFN is a high-efficiency power Schottky diode designed and manufactured by STMicroelectronics, a global semiconductor leader known for its commitment to delivering innovative and reliable electronic components. This diode is specifically engineered to meet the needs of modern compact electronic applications that require efficient power management and high reliability.

Key Features:

  • Low Forward Voltage Drop (Vf): The STPS2L25AFN boasts a low forward voltage drop, which enhances the overall efficiency of the power circuit by reducing the amount of power dissipation during operation.
  • High Surge Current Capability: This diode can handle high surge currents without damage, making it suitable for applications that experience frequent power surges or transient voltage spikes.
  • Low Leakage Current: The low reverse leakage current characteristic minimizes power loss when the diode is in the reverse-biased state, contributing to the energy efficiency of the system.
  • High Junction Temperature: With an operating junction temperature range from -40°C to 150°C, the STPS2L25AFN is designed to withstand harsh environments and maintain stable performance even under extreme conditions.

Applications:

The STPS2L25AFN is suitable for a broad range of applications, including:

  • Switch-mode power supplies (SMPS)
  • DC-DC converters
  • Free-wheeling diodes in power supplies and converters
  • Reverse battery protection circuits
  • Automotive applications requiring high reliability and performance

Package and Quality:

The STPS2L25AFN is housed in a robust and compact SMBflat-3L package, which offers a footprint-compatible solution for easy integration into various circuit designs. The package is designed to optimize the thermal performance and ensure a reliable mechanical and electrical connection. STMicroelectronics ensures that this product meets stringent quality standards, providing designers with a dependable component for their high-performance power management solutions.

By incorporating the STPS2L25AFN Schottky diode into your design, you can expect a combination of low power loss, high efficiency, and reliable operation, making it an excellent choice for energy-sensitive and space-constrained applications.
