Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube
Part Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) @ If 480mV @ 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 4mA @ 30V
Operating Temperature - Junction 150°C (Maximum)
Mounting Style Through Hole

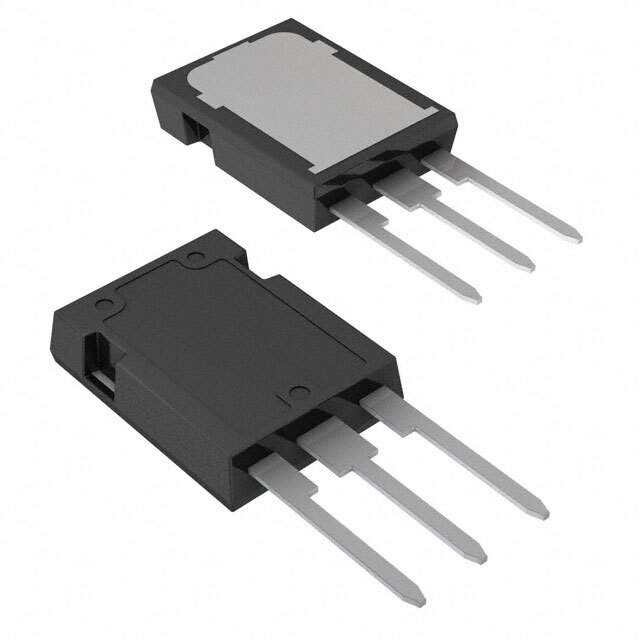

Package TO-247-3
Manufacturer Package MAX247
Win Source Part Number 1261935-STPS80L30CY
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name STPS80L30CY
Introduction Date August 01, 1999
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian STPS80L30CY CAD Model

Description

The STPS80L30CY is a state-of-the-art power Schottky rectifier designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This component is engineered to meet the demands of high-efficiency power conversion systems, offering low forward voltage drop and reduced power losses.

Key Features

  • High Junction Temperature Capability: With a junction temperature range of -40°C to 175°C, the STPS80L30CY is suitable for high-temperature applications, ensuring reliability and performance under extreme conditions.
  • Low Forward Voltage Drop: The device provides a very low forward voltage drop, which translates to better efficiency in power conversion, leading to energy savings in the end application.
  • High Surge Current Capability: This rectifier can handle high surge currents, making it an excellent choice for applications that may experience unexpected overcurrent conditions.

Applications

The STPS80L30CY is versatile and can be used in a wide array of applications, including:

  • Switch-mode power supplies (SMPS)
  • Power management systems
  • DC-DC converters
  • Free-wheeling diodes
  • Reverse battery protection

Package and Quality

The component comes in a TO-247 package, which is known for its high power dissipation capability. The package design ensures a robust and reliable mechanical structure, which is vital for the longevity and durability of the device in harsh environments.

Environmental Compliance

STMicroelectronics is committed to environmental stewardship. The STPS80L30CY is compliant with RoHS (Restriction of Hazardous Substances) and conforms to STMicroelectronics' sustainability strategy, which includes reducing the ecological footprint of their products.

Conclusion

With its combination of efficiency, reliability, and environmental compliance, the STPS80L30CY from STMicroelectronics represents an optimal solution for designers looking to enhance the performance of their power conversion systems. Its robustness and versatility make it a top choice for a broad spectrum of industrial and consumer applications.
