Products specifications

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 44 Weeks

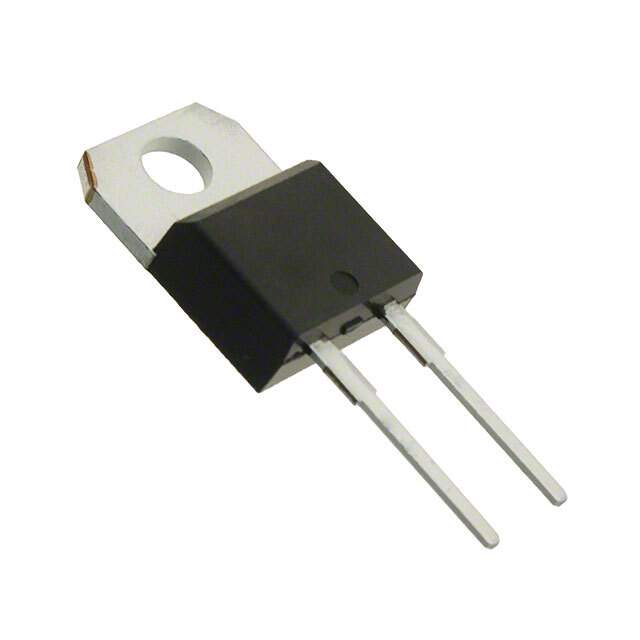

Features Diode Silicon Carbide Schottky 650 V 4A Through Hole TO-220AC ins
Manufacturer STMicroelectronics
Package Tube
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Through Hole
Package TO-220-2 Insulated, TO-220AC
Case / Package TO-220AC ins
Family Name STPSC4
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number STPSC4H065DI-ND, 497-STPSC4H065DI, 497-14575-5-ND, -497-14575-5, 497-14575-5
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 898420-STPSC4H065DI
Ultra Librarian 3D Model Ultra Librarian STPSC4H065DI CAD Model

Description

The STPSC4H065DI is a high-performance silicon carbide (SiC) power Schottky diode designed by STMicroelectronics, a leader in semiconductor solutions. This diode is specifically engineered to accommodate applications demanding efficiency, compactness, and robustness. It is ideal for a range of power applications, including power supplies, inverters, and motor drives.

Key Features

  • High Voltage Rating: The STPSC4H065DI can withstand voltages up to 650V, making it suitable for high voltage applications.
  • Low Forward Voltage Drop: The device features a low forward voltage drop, resulting in reduced conduction losses and improved system efficiency.
  • No Reverse Recovery Charge: With zero reverse recovery charge, this diode offers reduced switching losses and enhanced switching speed.
  • High Temperature Operation: Capable of operating at high junction temperatures, this diode ensures reliability even under extreme conditions.
  • High Surge Current Capability: Its robust design allows for high surge current capability, providing a margin of safety for unexpected conditions.

Applications

The STPSC4H065DI is versatile and can be used in a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • Power factor correction (PFC) circuits
  • DC-DC converters
  • Electric vehicle (EV) charging stations
  • Solar inverters
  • Uninterruptible power supplies (UPS)
  • Motor drives and inverters

Environmental and Quality Certifications

The STPSC4H065DI complies with a range of environmental standards, ensuring its suitability for eco-friendly applications. It is RoHS compliant and free from hazardous substances. Additionally, the diode is manufactured in facilities with ISO 9001:2015 certification, reflecting STMicroelectronics' commitment to quality and customer satisfaction.

Conclusion

With its combination of high voltage capability, efficiency, and robustness, the STPSC4H065DI from STMicroelectronics is an excellent choice for designers looking to improve the performance and reliability of their power conversion systems. Its advanced SiC technology enables systems to operate with reduced losses, higher frequencies, and in more compact footprints, making it a cutting-edge solution for modern power applications.
