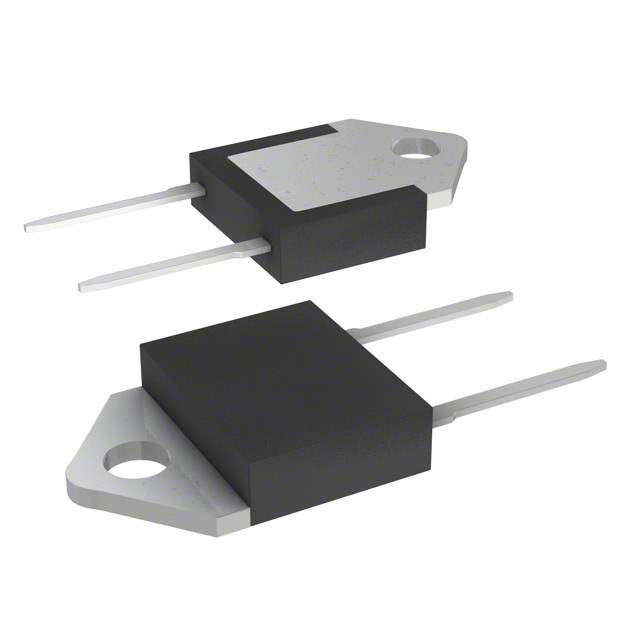

The STTH1512PI, manufactured by STMicroelectronics, is an ultrafast recovery diode designed to meet the high-efficiency requirements of today's power conversion applications. This robust component is a perfect fit for high-frequency power supplies, inverters, and as a freewheeling diode for motor control circuits.
Key Features
- High Voltage Capability: This diode is capable of withstanding voltages up to 1200V, making it suitable for high-voltage applications.
- Ultrafast Recovery Time: With an ultrafast recovery time, the STTH1512PI minimizes power loss and heat generation, which is critical for efficiency in power conversion systems.
- Low Forward Voltage Drop: A low forward voltage drop reduces thermal and conduction losses, enhancing overall system efficiency.
- High Surge Current Capability: This diode can handle high surge currents, providing robust performance during transient conditions.
- Soft Recovery Characteristics: The soft recovery characteristic reduces electromagnetic interference (EMI), which is beneficial in noise-sensitive applications.
- Insulated Package: The device comes in an insulated package, providing electrical isolation from the heatsink without the need for additional insulation pads.
Applications
The STTH1512PI is suitable for a wide range of applications, including:
- Switch-mode power supplies (SMPS)
- Power factor correction circuits (PFC)
- Snubber and clamp circuits
- Motor control inverters
- Free-wheeling diodes for motor control applications
- High-frequency rectifiers
Product Specifications
Parameter
Value
Repetitive Peak Reverse Voltage (V<sub>RRM)
1200V
Average Forward Current (I<sub>F(AV))
15A
Non-Repetitive Peak Forward Surge Current (I<sub>FSM)
150A
Operating Junction Temperature (T<sub>j)
-40°C to +175°C
Package
TO-220FP
Overall, the STTH1512PI ultrafast recovery diode from STMicroelectronics offers a blend of high performance, reliability, and efficiency, ideal for modern power conversion challenges.
