Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Package Tape & Reel (TR),Cut Tape (CT)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Mounting Type Through Hole

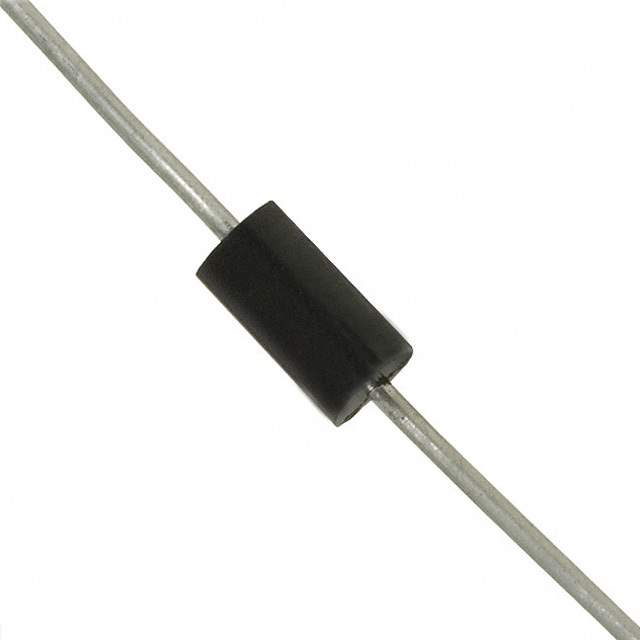

Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15
Operating Temperature - Junction 175°C (Max)
Base Product Number STTH3
Other Names 497-15675-1,497-15675-2,STTH3R04QRL
Standard Package 6,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282055-STTH3R04QRL
Ultra Librarian 3D Model Ultra Librarian STTH3R04QRL CAD Model

Description

The STTH3R04QRL from STMicroelectronics is a high-performance ultrafast recovery diode, specifically designed to meet the stringent requirements of high-efficiency power supply systems. This diode is part of ST's Turbo 2 ultrafast high voltage series, which is renowned for its low conduction and switching losses.

Key Features

  • High Voltage Capability: The STTH3R04QRL is capable of withstanding reverse voltages up to 400V, making it suitable for high voltage applications.
  • Ultrafast Recovery Time: With an exceptionally low reverse recovery time, this diode is optimized for high-frequency operations, significantly reducing switching losses and improving overall efficiency.
  • Low Forward Voltage Drop: The device exhibits a low forward voltage drop, which contributes to reduced power dissipation and improved thermal efficiency.
  • High Surge Current Capability: It can handle high surge currents, ensuring reliability and robustness during transient conditions.
  • Soft Recovery Characteristics: The diode's soft recovery behavior minimizes electromagnetic interference (EMI), which is crucial for applications sensitive to noise.

Applications

The STTH3R04QRL is well-suited for a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • Power factor correction circuits (PFC)
  • Snubber circuits
  • Freewheeling diodes in converters and motor control circuits
  • High-frequency rectification circuits

Package and Quality

The device is available in a DPAK package, which is ideal for compact designs and offers excellent power dissipation capabilities. It is also RoHS compliant and meets the requirements for industrial-grade quality standards, ensuring high reliability and performance in demanding environments.

Conclusion

The STTH3R04QRL ultrafast recovery diode from STMicroelectronics is a top choice for designers looking to enhance the efficiency and reliability of their power supply systems. With its robust design, high-speed switching capabilities, and compliance with environmental standards, this diode is an excellent component for modern electronic applications.
