Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 80A
Voltage - Forward (Vf) (Max) @ If 1.6V @ 80A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 105ns
Current - Reverse Leakage @ Vr 50μA @ 600V
Mounting Through Hole

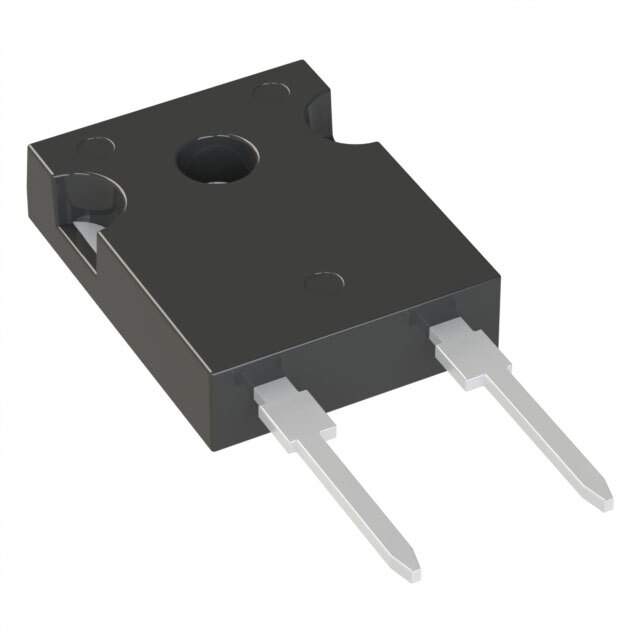

Case / Package DO-247
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 212415-STTH8006W
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STTH8006W CAD Model

Description

The STTH8006W is a high-performance ultrafast recovery diode designed by STMicroelectronics, one of the global leaders in semiconductor solutions. This diode is specifically engineered to meet the rigorous demands of high-efficiency converters and SMPS (Switched-Mode Power Supplies), where it helps to enhance system reliability and energy efficiency.

Featuring a reverse voltage of 600V and a forward current of 8A, the STTH8006W is capable of handling high surge currents without performance degradation, making it an excellent choice for applications requiring robust and reliable power handling capabilities. The diode's ultrafast recovery time minimizes energy loss and reduces electromagnetic interference (EMI), which is critical for maintaining the performance and longevity of electronic systems.

Key Features:

  • Ultrafast Switching: The diode's swift recovery time makes it suitable for high-frequency operations, ensuring minimal switching losses.
  • High Surge Capability: Its ability to withstand high surge currents enhances the durability of the power supply components.
  • Low Reverse Recovery Charge (Qrr): This feature contributes to improved overall efficiency by reducing the energy dissipated during the switching process.
  • High Junction Temperature: With a maximum operating junction temperature of 175°C, the STTH8006W is designed to perform reliably even in high-temperature environments.

Applications:

The STTH8006W is particularly well-suited for a variety of power applications, including:

  • Freewheeling diodes in converters and inverters
  • Snubber diodes
  • Boost diodes in PFC (Power Factor Correction) circuits

With its combination of high-speed switching, thermal resilience, and energy efficiency, the STTH8006W ultrafast recovery diode from STMicroelectronics represents a reliable solution for designers looking to optimize their power conversion systems.
