Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Package Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Mounting Type Through Hole
Package / Case TO-220-2 Insulated, TO-220AC
Supplier Device Package TO-220AC ins
Operating Temperature - Junction -40°C ~ 175°C
Base Product Number STTH8R04
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 497-7612-5,STTH8R04DI-ND
Standard Package 50
Win Source Part Number 974679-STTH8R04DI
Ultra Librarian 3D Model Ultra Librarian STTH8R04DI CAD Model

Description

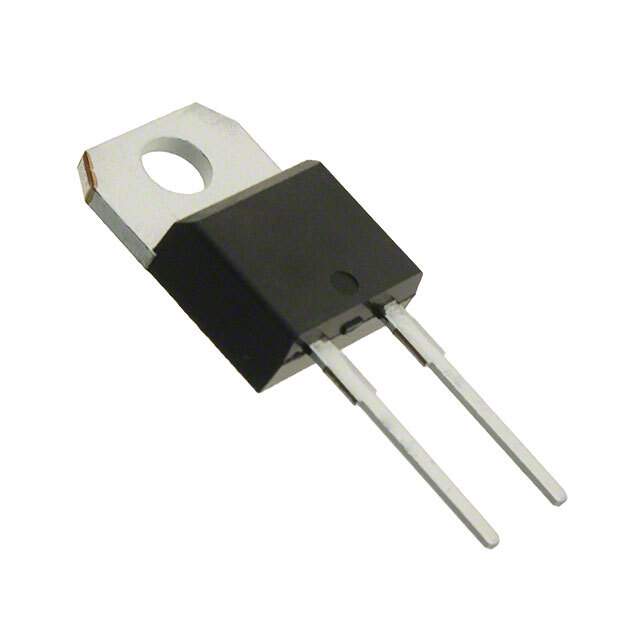

The STTH8R04DI is a state-of-the-art ultrafast recovery diode designed by STMicroelectronics, a leader in semiconductor solutions. This high-performance diode is specifically engineered to meet the rigorous demands of high-efficiency power supply applications and energy conversion systems.

Key Features

  • High Reverse Voltage Capability: The STTH8R04DI boasts an impressive reverse voltage of 400V, making it suitable for high-voltage operations and ensuring reliability in various applications.
  • Ultrafast Recovery Time: With an ultrafast recovery time, this diode minimizes power loss and improves the efficiency of the overall system, which is crucial for high-frequency operations.
  • Low Forward Voltage Drop: The low forward voltage drop feature provides better conduction efficiency, reducing thermal stress and contributing to the longevity of the device.
  • High Surge Current Capability: It is capable of handling high surge currents, offering robust performance during transient conditions and enhancing the safety of the electrical circuit.

Applications

The STTH8R04DI is ideal for a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • Power factor correction circuits (PFC)
  • Free-wheeling diodes in converters and motor control circuits
  • Snubber diodes
  • Automotive applications requiring high reliability

Package and Quality

This ultrafast recovery diode is encapsulated in an insulated TO-220FP package, which provides electrical isolation and thermal efficiency. The package is designed for easy mounting on a heat sink, which is essential for maintaining thermal stability during operation.

Environmental and Safety Compliance

STMicroelectronics is committed to environmental sustainability. The STTH8R04DI complies with international standards, including RoHS and REACH, ensuring that it meets the latest environmental regulations for electronic components. Moreover, the diode's robust construction ensures compliance with safety standards, providing a reliable solution for high-voltage and high-temperature environments.
