Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Class D
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 50W x 2 @ 6 Ohm
Supply Voltage - Operating 8 V to 26 V
Features Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby
Mounting SMD (SMT)
Temperature Range - Operating 0°C to 70°C (TA)

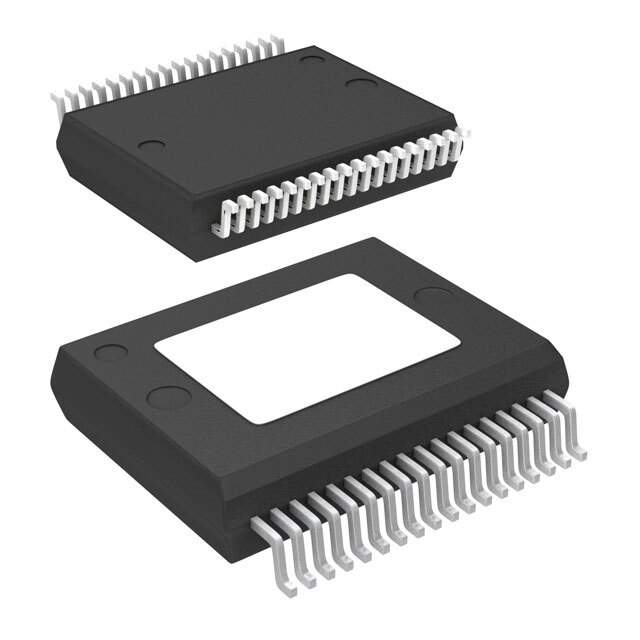

Case / Package PowerSSO-36 EPU
Dimension 36-FSOP (0.295", 7.50mm Width) Exposed Pad
Win Source Part Number 043060-TDA749213TR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TDA749213TR CAD Model

Description

Introducing the TDA749213TR Audio Amplifier IC from STMicroelectronics

The TDA749213TR is a cutting-edge audio amplifier integrated circuit (IC) developed by the renowned semiconductor manufacturer STMicroelectronics. This advanced audio solution is designed to deliver high-quality sound amplification with remarkable efficiency and fidelity, making it an ideal choice for a wide range of audio applications.

At the heart of the TDA749213TR lies its ability to drive a significant power output without sacrificing sound quality. This IC is capable of providing up to 25 watts of continuous RMS power per channel into an 8-ohm load with less than 10% total harmonic distortion plus noise (THD+N), ensuring loud and clear audio reproduction for listeners.

The TDA749213TR is built with flexibility in mind, supporting a wide supply voltage range from 8V to 26V. This allows it to be easily integrated into various audio systems, from small portable speakers to more complex home audio setups. Its multiwatt15H package ensures efficient heat dissipation, which is crucial for maintaining performance and reliability during extended periods of operation.

This audio amplifier IC is not just about power; it also incorporates advanced features such as a mute function that allows for seamless audio control, and a stand-by mode to reduce power consumption when the amplifier is not in use. These features contribute to the TDA749213TR's energy-efficient performance, making it an environmentally friendly choice for modern audio systems.

STMicroelectronics has also placed a strong emphasis on protection features in the TDA749213TR. The IC includes short-circuit protection and thermal overload protection, which safeguard the device and the overall system against potential damage from electrical mishaps or overheating.

In summary, the TDA749213TR from STMicroelectronics is a robust and versatile audio amplifier IC that offers high power output, excellent sound quality, and a suite of features designed for energy efficiency and system protection. It stands as a testament to STMicroelectronics' commitment to innovation and quality in the field of audio technology.
