Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Packaging Tube
Type Class AB
Output Type 4-Channel (Quad)
Max Output Power x Channels @ Load 75W x 4 @ 2 Ohm
Operating Supply Voltage 8 V ~ 18 V
Features I2C, Mute, Short-Circuit and Thermal Protection, Standby
Mounting Style Through Hole
Operating Temperature Range -55°C ~ 150°C (TJ)
Manufacturer Package 27-Flexiwatt (Horizontal)
Package 27-Flexiwatt (Formed Leads)
Win Source Part Number 1266245-TDA7563AH
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name TDA7563A
Introduction Date February 07, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian TDA7563AH CAD Model

Description

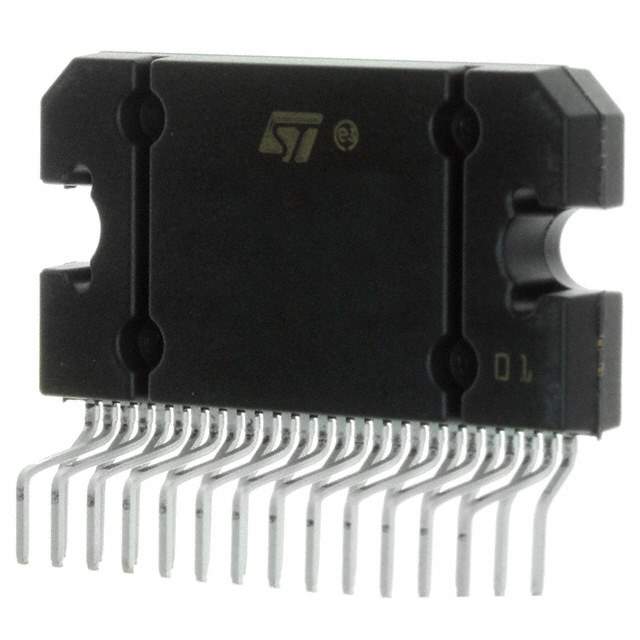

STMicroelectronics TDA7563AH Multifunction Quad Power Amplifier

The TDA7563AH is a cutting-edge multifunction quad power amplifier designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This high-performance audio amplifier integrates a plethora of features aimed at delivering superior sound quality and efficiency, making it an ideal choice for automotive audio applications.

At the heart of the TDA7563AH lies STMicroelectronics' proprietary BCD (Bipolar/CMOS/DMOS) technology, which enables the device to deliver an outstanding power output with high efficiency and reduced heat dissipation. The amplifier is capable of driving a 4 x 50W output power into 4 ohms at 14.4V, which can be a game-changer for in-car entertainment systems requiring high fidelity and powerful sound reproduction.

The device boasts an impressive array of features including a MOSFET output stage, standby and mute functions, and a clip detector. Furthermore, it is equipped with a built-in diagnostic system that provides valuable feedback on the status of the speaker and the amplifier, ensuring reliable operation and protection against faults.

One of the key advantages of the TDA7563AH is its flexibility. It can operate in various configurations, such as single-ended or bridge-tied loads, allowing designers to tailor the audio system to specific requirements. Additionally, its I2C bus control interface facilitates seamless integration with modern automotive infotainment systems, providing enhanced control and customization options.

The TDA7563AH also prioritizes safety and reliability with its multiple protection features, including short-circuit protection, thermal overload protection, and a load dump voltage surge capability. These safeguards ensure the amplifier's robust performance even in the challenging electrical environment of a vehicle.

With its superior audio performance, robust design, and advanced diagnostic and protection features, the TDA7563AH from STMicroelectronics stands out as a premier choice for automotive audio amplification. It is a testament to STMicroelectronics' commitment to delivering high-quality audio solutions that enhance the in-car listening experience.

For more technical specifications and application guidance, designers and audio enthusiasts can refer to the comprehensive datasheet available on the STMicroelectronics website.
