Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Transistor Polarity PNP - Darlington
Maximum Current Collector 10A
VCEO Maximum Collector-Emitter Breakdown Voltage 80V
Max Vce (sat) 3V @ 40mA, 10A
Collector Cut-off Current(Max) 2mA
Typical Gain (hFE) (Min) 1000 @ 5A, 4V
Maximum Power Dissipation 125W
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole

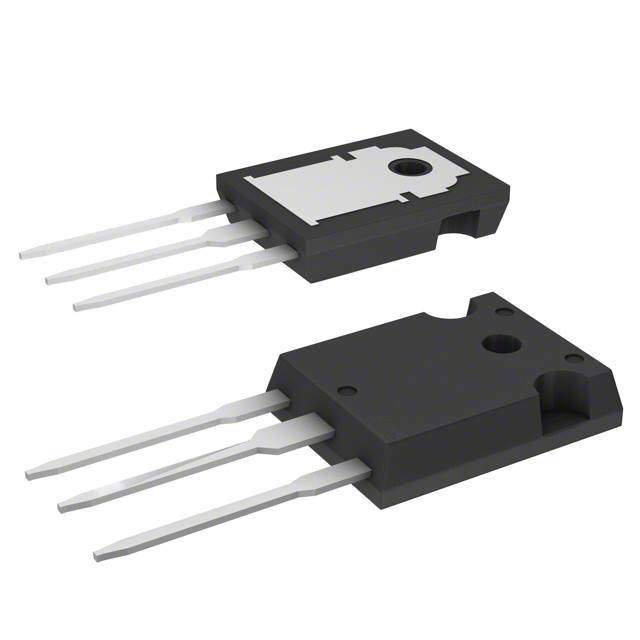

Case / Package TO-218
Win Source Part Number 121812-TIP146
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian TIP146 CAD Model

Description

The TIP146 from STMicroelectronics is a PNP power transistor that is designed to handle high power and current, making it an ideal choice for a variety of applications in power regulation and switching. This silicon Epitaxial-Base transistor is housed in a TO-220 plastic package, which is universally preferred for all commercial-industrial applications at power dissipation levels up to approximately 70 watts.

Key Features

  • High Current Handling: The TIP146 is capable of handling collector currents up to -10 A, which makes it suitable for high-power applications.
  • High Voltage Rating: With a collector-emitter voltage (VCEO) of -80 V, it can withstand significant voltage without breakdown, offering reliable performance in circuits with high voltage requirements.
  • Complementary NPN Type: It has a complementary NPN type transistor, the TIP141, providing flexibility in designing push-pull, complementary configurations.
  • Low Saturation Voltage: The device features low collector-emitter saturation voltage, which reduces power loss and improves efficiency during operation.
  • Robust Thermal Performance: The TO-220 package enhances thermal performance and contributes to the overall reliability of the transistor under high-power conditions.

Applications

The TIP146 is versatile and can be used in a wide range of applications, such as:

  • Power linear and switching applications.
  • Audio amplifiers and high-fidelity audio output stages.
  • DC-DC converters and power supply regulation circuits.
  • Motor control circuits, including servo controls and power drivers.

Technical Specifications

Parameter Value Collector-Base Voltage (VCBO) -100 V Collector-Emitter Voltage (VCEO) -80 V Emitter-Base Voltage (VEBO) -5 V Collector Current (IC) -10 A Total Power Dissipation (Ptot) 70 W Operating and Storage Junction Temperature Range (TJ, Tstg) -65 to 150 °C

With its robust performance and reliability, the TIP146 PNP power transistor from STMicroelectronics is a solid choice for designers seeking a component that can deliver high power in a compact form factor.
