Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Transistor Polarity PNP - Darlington
Maximum Current Collector 10A
VCEO Maximum Collector-Emitter Breakdown Voltage 60V
Max Vce (sat) 3V @ 40mA, 10A
Collector Cut-off Current(Max) 2mA
Typical Gain (hFE) (Min) 1000 @ 5A, 4V
Maximum Power Dissipation 125W
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole

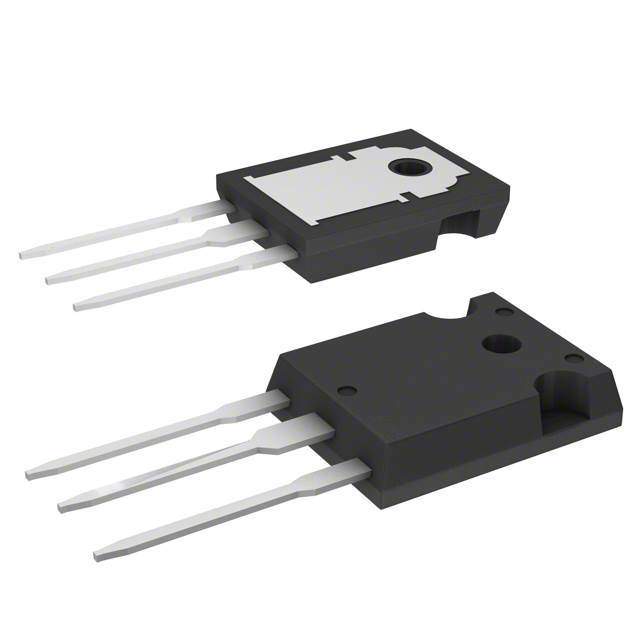

Case / Package TO-218
Win Source Part Number 127294-TIP145
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian TIP145 CAD Model

Description

The TIP145 from STMicroelectronics is a silicon PNP power transistor designed for use in a wide array of general-purpose amplification and switching applications. This robust semiconductor device is part of a series that has been engineered to deliver high performance and reliability, making it an ideal choice for designers and engineers looking to build efficient and durable electronic circuits.

Key Features

  • High Current Capability: The TIP145 is capable of handling collector currents up to -15 A, making it suitable for high-power applications.
  • High Voltage Tolerance: With a collector-emitter voltage (VCEO) of -60 V, this transistor can withstand significant voltage without breakdown, ensuring stable operation under a range of conditions.
  • Complementary NPN Type: The TIP145 is complemented by the TIP140, TIP141, and TIP142 NPN transistors, allowing for flexibility in designing push-pull or other complementary configurations.
  • Low Saturation Voltage: The low collector-emitter saturation voltage reduces power dissipation and improves efficiency, which is crucial for power regulation and switching applications.
  • Monolithic Construction: The monolithic integration of the transistor provides excellent thermal performance and contributes to the device's overall reliability.
  • Darlington Configuration: The TIP145 features a built-in Darlington configuration, which offers high current gain and reduces the base drive requirements.

Applications

The TIP145 is versatile and can be used in a variety of applications, including:

  • Linear and switching industrial equipment
  • Power regulators and converters
  • Motor control systems
  • Audio amplifiers
  • Relay and solenoid drivers

Package and Quality

The TIP145 is offered in a TO-247 package, which provides excellent power dissipation capabilities. STMicroelectronics is committed to delivering high-quality products, and the TIP145 is no exception, meeting stringent industry standards for performance and reliability. Whether for prototyping or mass production, the TIP145 is a dependable choice for efficient power control in electronic circuits.
