The TSV911AILT is a high-precision operational amplifier designed by STMicroelectronics, a leader in the semiconductor industry. This op-amp is part of the TSV911 family, which is renowned for its low-power consumption and high-speed performance. The TSV911AILT is an ideal choice for a wide range of applications, including battery-powered devices, portable equipment, and sensor interfaces.

Key Features

• Low Power Consumption: The TSV911AILT boasts a low power consumption of only 29 µA at 5 V, making it suitable for energy-sensitive applications.
• High Gain Bandwidth Product: With a gain bandwidth product of 8 MHz, this operational amplifier can handle high-speed signals, ensuring a fast response time in dynamic applications.
• Stable with Low Capacitive Loads: The device is stable for capacitive loads up to 200 pF, which makes it robust in various circuit configurations.
• Low Input Offset Voltage: It features a low input offset voltage of 1 mV max (at 25°C), which enhances the accuracy of the amplification process.
• Wide Supply Voltage Range: The TSV911AILT operates over a wide supply voltage range from 2.5 V to 5.5 V, providing flexibility in different circuit designs.
• Extended Temperature Range: The device can operate within a temperature range of -40°C to +125°C, making it reliable in extreme conditions.

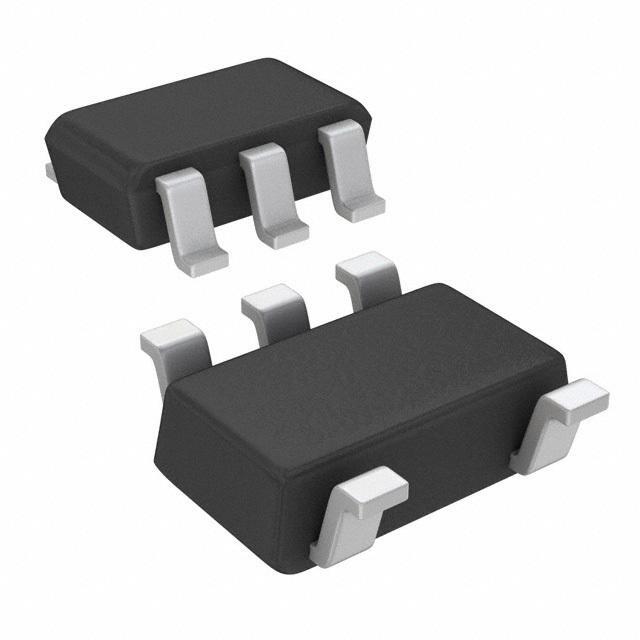

• Small Package: Available in a tiny 5-pin SOT23-5 package, the TSV911AILT saves space on printed circuit boards, which is essential for compact electronic designs.

Applications

The versatility of the TSV911AILT allows it to be used in various applications. It is well-suited for analog filters, medical instrumentation, and automotive electronics due to its precision and robustness. Additionally, its low-power characteristics make it an excellent choice for portable devices, such as wearables and mobile phones, where power efficiency is critical.

With its combination of low power, high accuracy, and wide operational range, the TSV911AILT from STMicroelectronics represents a reliable and efficient solution for designers seeking to enhance the performance of their analog circuits.
