STMicroelectronics VN7004CLHTR - High-Side Driver

The VN7004CLHTR from STMicroelectronics is a robust, high-side driver that is part of the VIPower™ M0-7 series. This advanced driver IC is designed to deliver efficient and reliable control for automotive and industrial applications. With its capability to handle high current loads, the VN7004CLHTR is an ideal solution for driving resistive, inductive, and capacitive loads, including filament lamps, DC motors, and valves.

Key Features:

• High Load Capability: This device can drive high current loads up to 40V, making it suitable for a wide range of applications that require robust performance.
• Thermal Shutdown: With built-in thermal shutdown protection, the VN7004CLHTR ensures safe operation by automatically turning off when the junction temperature exceeds the threshold.
• Current Limitation: The driver includes current limitation to prevent damage from overcurrent conditions, enhancing the longevity and reliability of the system.
• Integrated Diagnostics: The device provides real-time diagnostic feedback that can be used to monitor the status of the load, including open-load detection in off-state and feedback of the load current while the device is on.
• Low Standby Current: With an emphasis on power efficiency, the VN7004CLHTR features a low standby current, reducing power consumption when the driver is not actively driving a load.

Applications:

• Automotive exterior and interior lighting
• Automotive motor control applications
• Industrial automation
• Smart home and building automation systems

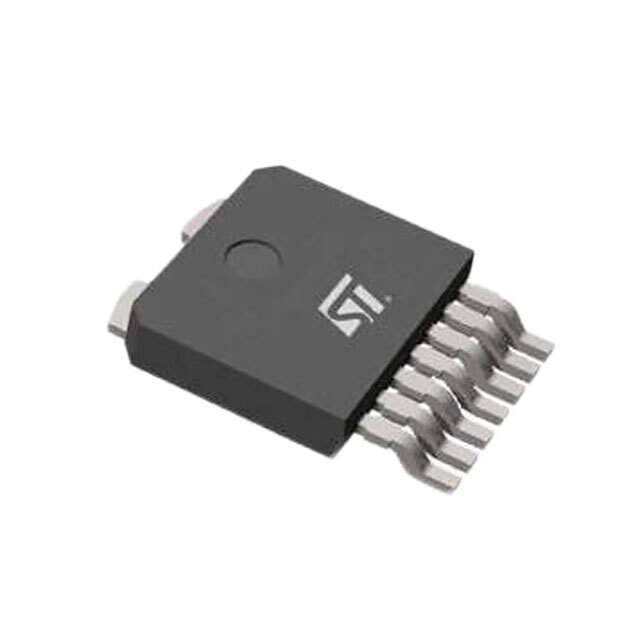

The VN7004CLHTR is housed in a compact PowerSSO-16 package, which is designed for space-constrained applications. It also features a very low on-resistance, which minimizes power dissipation. The device is fully protected against overvoltage, undervoltage, overcurrent, and short-circuit conditions, ensuring that it delivers reliable performance in the most demanding environments.

Overall, the VN7004CLHTR from STMicroelectronics combines high-side driver functionality with advanced protection features, making it a versatile and dependable choice for designers looking to enhance the performance and safety of their power management systems.
