Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series VIPower
Packaging Tube
Part Status Obsolete(EOL)
Switch Type General
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 5.5 V ~ 36 V
Current - Output (Maximum) 6A
Rds On (Typ) 60 mOhm (Maximum)
Features Auto Restart, Status Flag
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature Range -40°C ~ 150°C (TJ)
Package P²PAK (4 leads + Tab)
Manufacturer Package P2PAK
Win Source Part Number 1279528-VN750-B5
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name VN750
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VN750-B5 CAD Model

Description

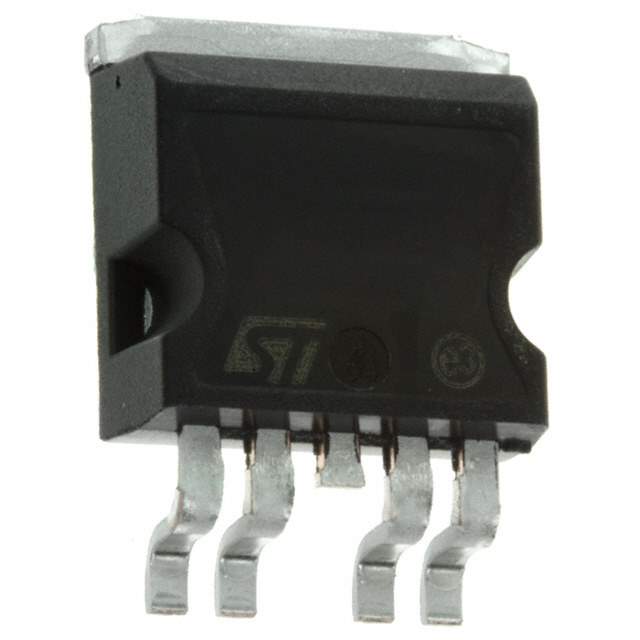

Overview of STMicroelectronics VN750-B5

The VN750-B5 from STMicroelectronics is a robust, high-side driver IC designed to deliver efficient and reliable control for automotive and industrial applications. This device is part of the VIPower M0-5 family and is particularly suited for driving resistive or inductive loads with one side connected to ground.

Key Features

  • Active VCC Clamp: The VN750-B5 features an active clamp on the supply voltage, ensuring that the device is protected against surges and enhancing its reliability in fluctuating voltage environments.
  • Thermal Shutdown with Auto-Restart: With its built-in thermal shutdown feature, the device prevents overheating by automatically shutting down and restarting once a safe temperature is reached.
  • Current Limitation: The device offers a current limitation feature that protects the load and the driver from overcurrent conditions.
  • Open Load Detection in Off State: This functionality allows the detection of load disconnection, even when the driver is turned off, improving safety and diagnostics.
  • Fast Demagnetization of Inductive Loads: The VN750-B5 is capable of rapidly dissipating energy from inductive loads, reducing stress and enhancing the lifespan of the system.
  • Under-voltage Shutdown: This feature ensures that the driver turns off when the supply voltage drops below a certain threshold, protecting the device and the load.
  • Loss of Ground and Loss of VCC Protection: The driver is protected against the loss of ground or VCC, which could potentially damage the system.

Applications

The VN750-B5 is designed to be versatile and is suitable for a wide range of applications, including:

  • Automotive interior and exterior lighting
  • Automotive relay replacements
  • Industrial control systems
  • DC motor control circuits

Package and Quality

The VN750-B5 is offered in a compact, surface-mount package, making it suitable for space-constrained applications. It is manufactured to meet the stringent quality standards of the automotive industry, ensuring high reliability and performance in harsh environments.

With its comprehensive set of protection features and robust design, the VN750-B5 from STMicroelectronics is a reliable choice for designers looking to create efficient and durable systems in automotive and industrial applications.
